Clock: Service and Repair

Radio Frequency Controlled Clock Receiver

Removing






- Remove the rear bumper cover.

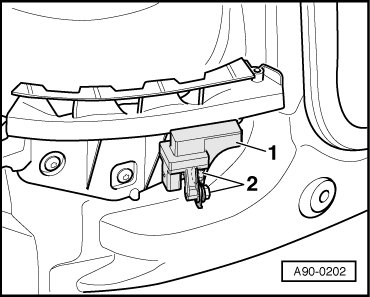

- Disconnect the connector on the radio frequency controlled clock receiver (J489) - item 1 -.

- Remove screws - 2 - and remove radio frequency controlled clock receiver.

Installing

Install in reverse order of removal, noting the following:

- Install the rear bumper cover.

Tightening Specifications
