Cigarette Lighter Outlet With Function Selector Switch II

Cigarette Lighter Outlet with Function Selector Switch II

Special tools, testers and auxiliary items required

• Release tool (T40148)

Removing






- Remove center console.

- Remove the Function Selector Switch II (E272). Refer to => [ Function Selector Switch II ] Function Selector Switch II.

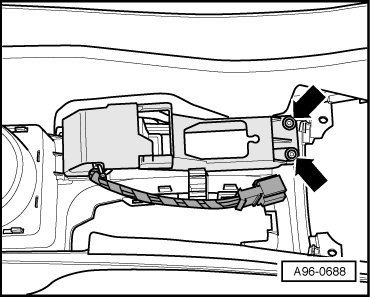

- Remove screws - arrows -.

- Remove the cigarette lighter and bracket from the center console by moving the bracket downward.

- The release tabs - 2 - on the release tool (T40148) must engage in the openings in the cigarette lighter/ 12V outlet - 3 - - arrow - and the threaded pin - 1 - must slide down as far as the stop.






- If equipped, open the cover - 1 - and hold it in this position.






- Insert the (T40148) all the way into the cigarette lighter/12V outlet.

- Rotate the thumbwheel - 2 - on the (T40148) clockwise as far as the stop.

• The piston - 2 - is pulled upward and the release tabs - 1 - on the (T40148) spread - arrows -.






- Remove the cigarette lighter/12V outlet using the (T40148) from the cigarette lighter illumination (L28).

- Disconnect the electrical connector.

Installing

Install in reverse order of removal, observing the following:


Risk of injury.

• After removing the release tool (T40148) , check to see if the lighter retaining tabs are bent.

• If the retaining tabs are bend, bend them back so the lighter does not slide out.

- Remove the support - 1 - on the (T40148).






- Slide the piston down and hold it in place.

- Rotate the thumbwheel - 4 - on the (T40148) counterclockwise - arrow -. This loosens the release tabs - 2 - on the cigarette lighter - 3 - so the (T40148) can be removed.

- Install the Function Selector Switch II (E272). Refer to => [ Function Selector Switch II ] Function Selector Switch II.

- Install center console.

Tightening Specifications
