Cooling Performance - With Automatically Regulated A/C System
>>

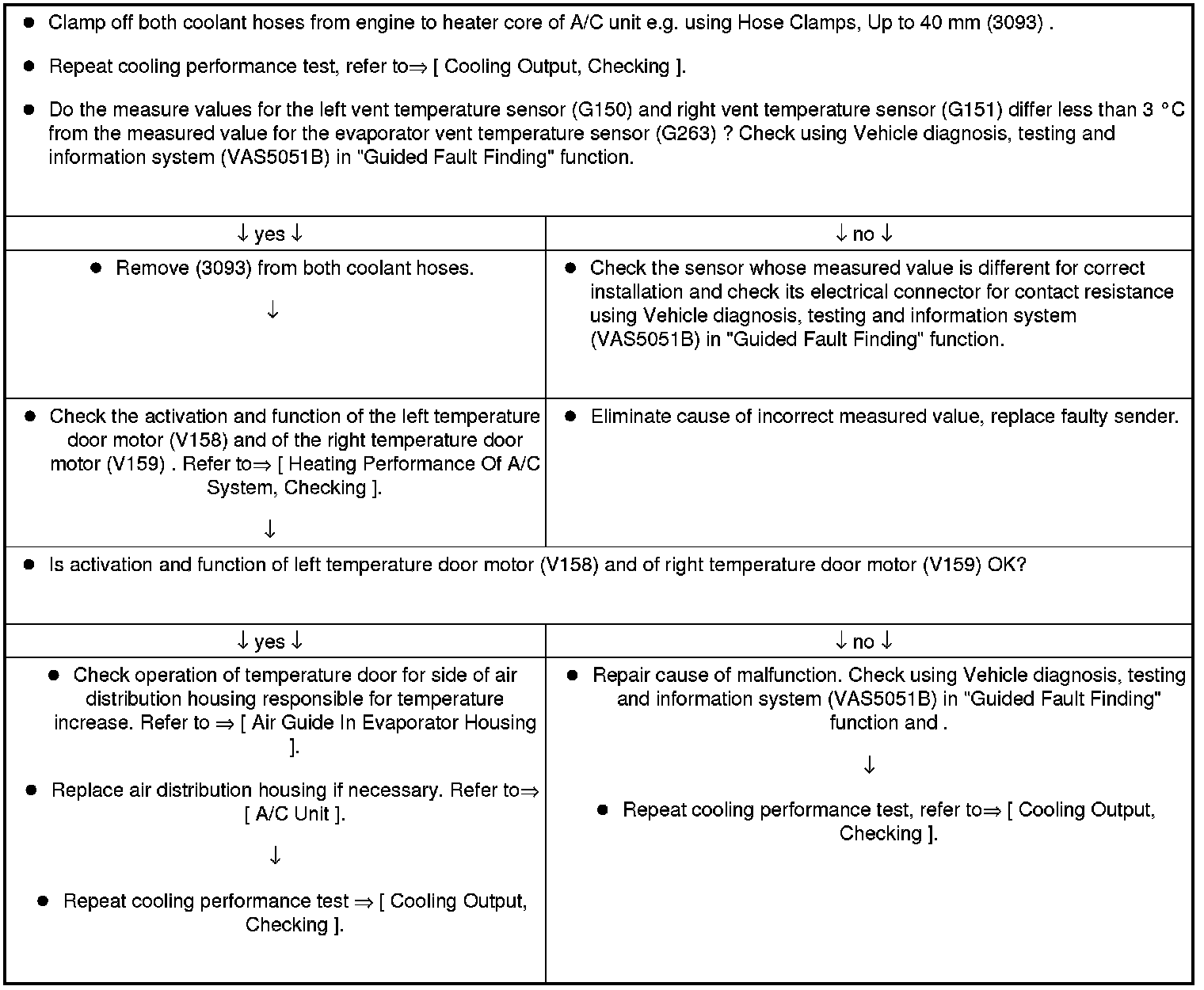

Temperature Increase Downstream From Evaporator, Determining Malfunction
Temperature Increase Downstream From Evaporator, Determining Malfunction
Temperature Increase Downstream from Evaporator, Determining Malfunction
