Engine Assembly

Special Tools

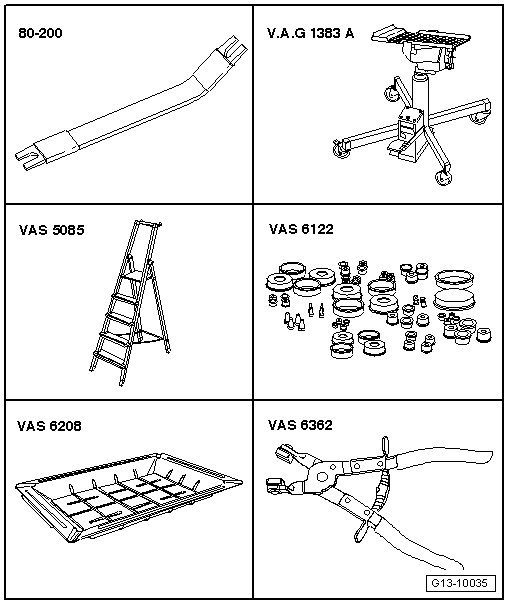

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Engine/Transmission Jack (V.A.G 1383 A)

• Step Ladder (VAS 5085)

• Drip Tray (VAS 6208)

• Hose Clip Pliers (VAS 6362)






Special tools, testers and auxiliary items required

• Holding Fixture (VW 540)

• Lifting Tackle (3033)

• Engine and Transmission Holder (VAS 6095)

• Shop Crane (VAS 6100)

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)





• Bracket (2024 A /1), part of the Engine Sling (2024 A)





• Locking Pin (T10060 A)

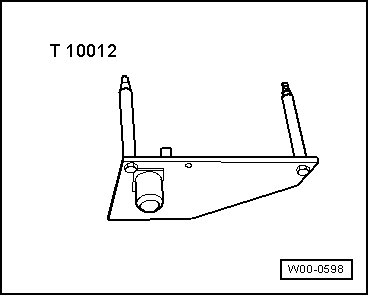

• Engine/Trans. Support (T10012)





• Special Hook (10 - 222 A /20)





• Bracket (2024 A /1), part of the Engine Sling (2024 A)





• Shop Crane (VAS 6100)
