Cylinder Head, Valvetrain

Special Tools






Special tools, testers and auxiliary items required

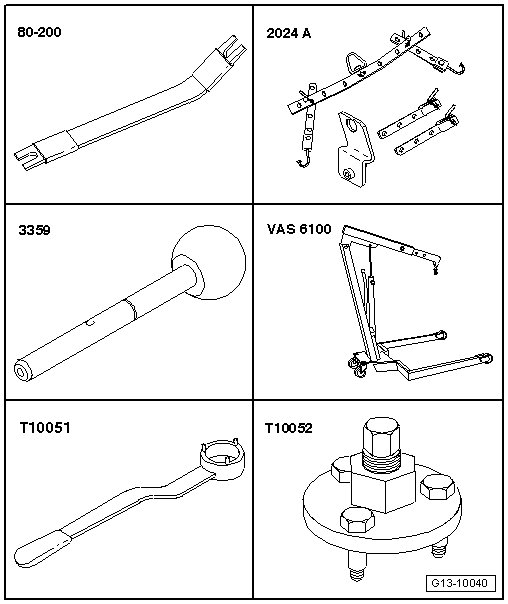

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Engine Sling (2024 A)

• Diesel Injection Pump Locking Pin (3359)

• Shop Crane (VAS 6100)

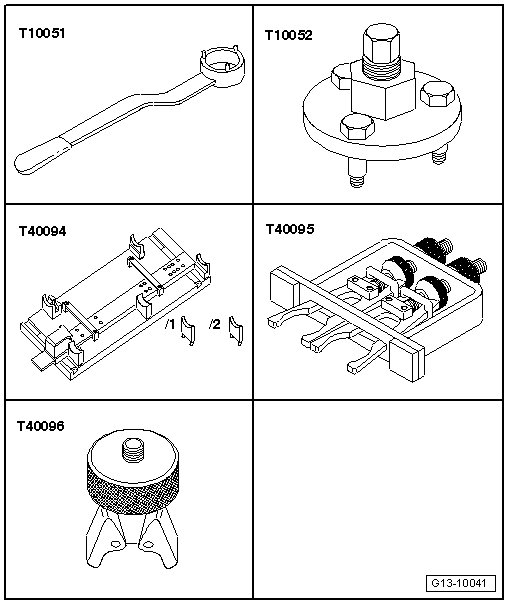

• Camshaft Gear Counter-Holder (T10051)

• Puller (T10052)






Special tools, testers and auxiliary items required

• Camshaft Gear Counter-Holder (T10051)

• Puller (T10052)

• Camshaft Insertion Tool (T40094)

• Camshaft Insertion Tool (T40095)

• Tensioning Tool (T40096/1)






Special tools, testers and auxiliary items required

• Diesel Injection Pump Locking Pin (3359) (quantity: 2)

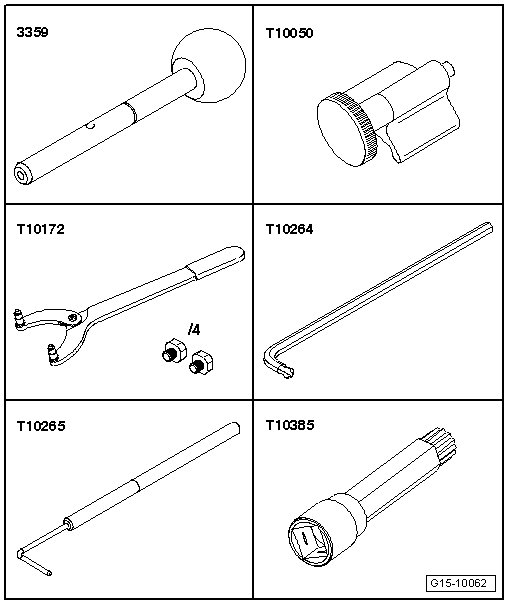

• Crankshaft Stop (T10050)

• Counter-Holder Tool (T10172)

• Special Wrench, Long Reach (T10264)

• Locking Tool (T10265)

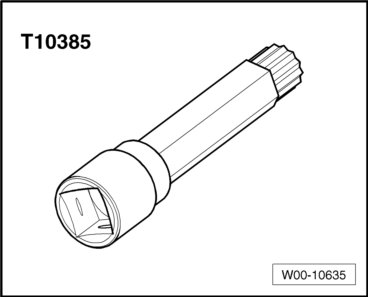

• Socket Insert XZN 10 (T10385)






Special tools, testers and auxiliary items required

• Valve Seal Removal Tool (3364)

• Valve Stem Seal Driver (3365)

• Valve Retainer Disassembly and Assembly Device (VAS 5161) with Guide Plate (VAS 5161/23) and Sleeve (VAS 5161/23-1)

• Engine and Transmission Holder (VAS 6095)

• Cylinder Head Tensioning Device (VAS 6419)

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)





• Dial Gauge (VAS 6079)





• Socket Insert XZN 10 (T10385)

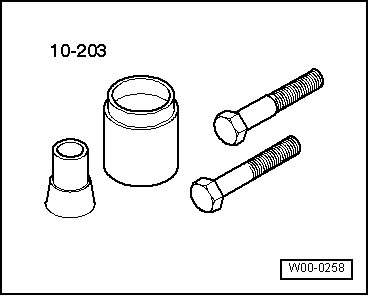

• Oil Seal Driver (10 - 203)

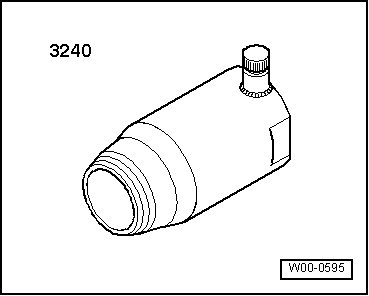

• Seal Extractor (3240)
