Crankshaft, Cylinder Block

Special Tools






Special tools, testers and auxiliary items required

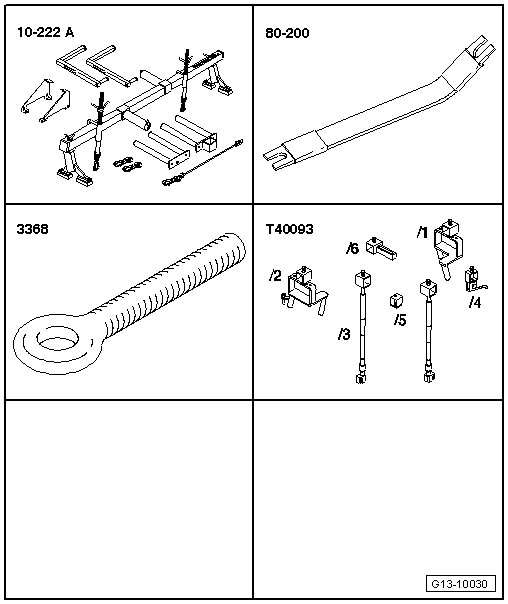

• Engine Support Bridge (10 - 222 A)

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Lifting Eyebolt (3368)

• Engine Support Supplement Set (T40093)

• Nut taken from the Engine Support Bracket (T40150)






Special tools, testers and auxiliary items required

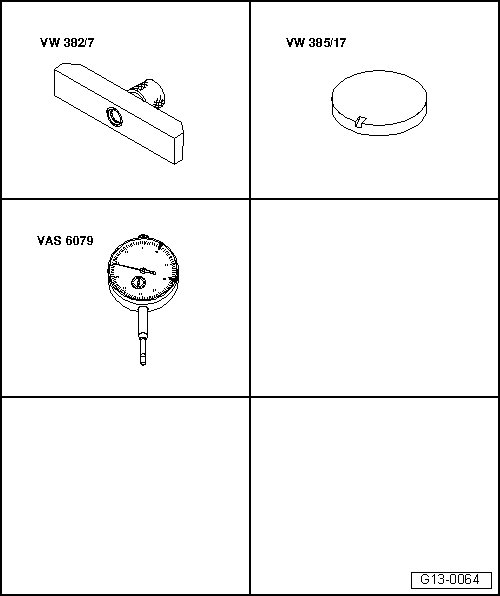

• Measuring Bar (VW 382/7) from the Special Socket and Measuring Tools (VW 382)

• Magnetic Plate 50 mm Dia. (VW 385/17) from Universal Measuring Tool (VW 385)

• Dial Gauge (VAS 6079)

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)





• Locking Pin (T10060 A)





• Seal Remover (3203)





• Counter Support (3415)





• Assembly Tool (T10053)





• Flywheel Retainer (3067)





• Drift (VW 207 C) or Centering Mandrel (3176)





• - 1 - Kukko 21/1 internal puller





• - 4 - Kukko 22/1 counter-support

• Depth Gauge (VAS 6082)





• Oil Seal Driver (10 - 203)

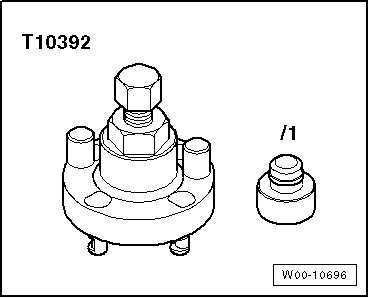

• Puller (T10392)

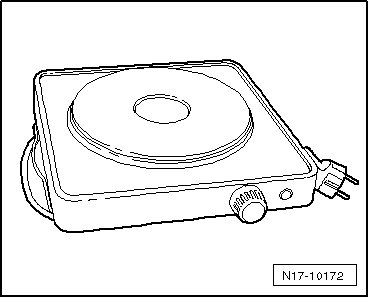

• Hotplate (commercially available)
