Timing Cover: Specifications






Rear Toothed Belt Guard
Tighten bolts to 9 Nm

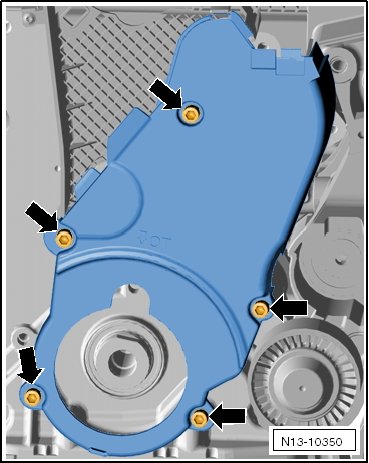

Lower Toothed Belt Guard and in the Center - Tightening Specification
Tighten bolts to 9 Nm
