Procedures

Engine, Securing to Engine and Transmission Holder

Special tools, testers and auxiliary items required

• Holding Fixture (VW 540)

• Lifting Tackle (3033)

• Engine and Transmission Holder (VAS 6095)

• Shop Crane (VAS 6100)

Procedure

• Transmission separated from engine.

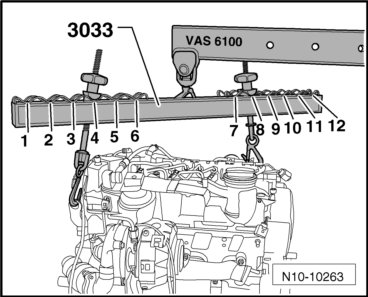

- Engage (3033) on engine and on (VAS 6100) as shown in illustration.





- Raise the engine from the (VAS 6100) using the (T10012).

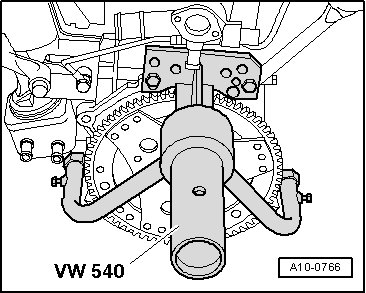

- Secure the engine with the (VW 540) to the (VAS 6095).
