Drive Belts, Mounts, Brackets and Accessories: Service and Repair

Accessory Assembly Bracket

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Lifting Eyebolt (3368)

• Engine Support Supplement Set (T40093)

• Nut taken from the Engine Support Bracket (T40150)

• M10 collar nut or M10 nut with washer

Removing

- Remove the generator.





- Remove the high pressure pump.

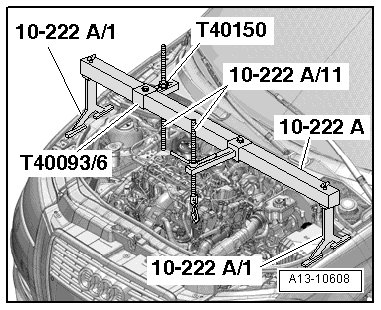

- Mount the (10 - 222 A) with the adapters and spindles on the fender bolting edge as illustrated.





- Attach the left spindle carabiner hook to the engine lifting eye.


Risk of accident if the threaded connection is loose.

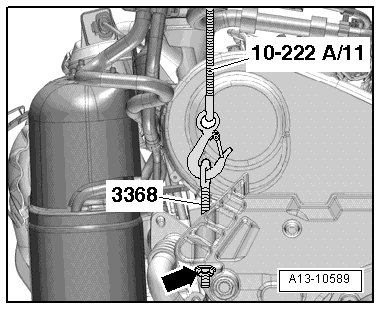

• Tightening the collar nut (or the nut and washer) - arrow - at least 6 turns will make sure the (3368) is secure.

- Secure the (3368) to the engine support with a M10 collar nut or a M10 nut and washer as illustrated.





- Attach the right spindle (10 - 222 A /11) with the nut from the (T40150) to the (3368).

- Uniformly pre-load engine using both spindles but do not lift it.

- Remove bolts - arrows -.





- Disconnect the engine coolant level warning switch (F66) connector and move the coolant reservoir to the side.

- Remove the bolts - 1 - and - 2 - and the connecting brace.





- Remove the bolts - 3 through 6 - and the engine mount.

- Remove the bolt - 3 - on the engine support.





• Ignore - 1 and 2 -.

- Remove bolt - arrow -.





- Remove the bolts - 1 - and - 2 - and remove the toothed belt idler rollers.

- Remove bolts - 1 to 6 - and remove accessory assembly bracket.





Installing

Installation is in reverse order of removal, note the following:

• Replace the auxiliary component bracket bolts.

- If an alignment bushing is missing on the right side between the auxiliary component bracket and the cylinder block, install one.

- Tighten accessory assembly bracket bolts => [ Accessory Assembly Bracket -
Tightening Specifications and Tightening Sequence ] Ribbed Belt Drive With Tensioner and A/C Compressor Assembly Overview.

- Install the engine support and engine mount. Refer to => [ Subframe Assembly Overview ] Subframe Assembly Overview.

- Install the high pressure pump.

- Install toothed belt (adjust timing) => [ Installing (Adjusting valve timing) ] Toothed Belt.

- Install the generator.
