Crankshaft, Cylinder Block - Fastener Tightening Specifications

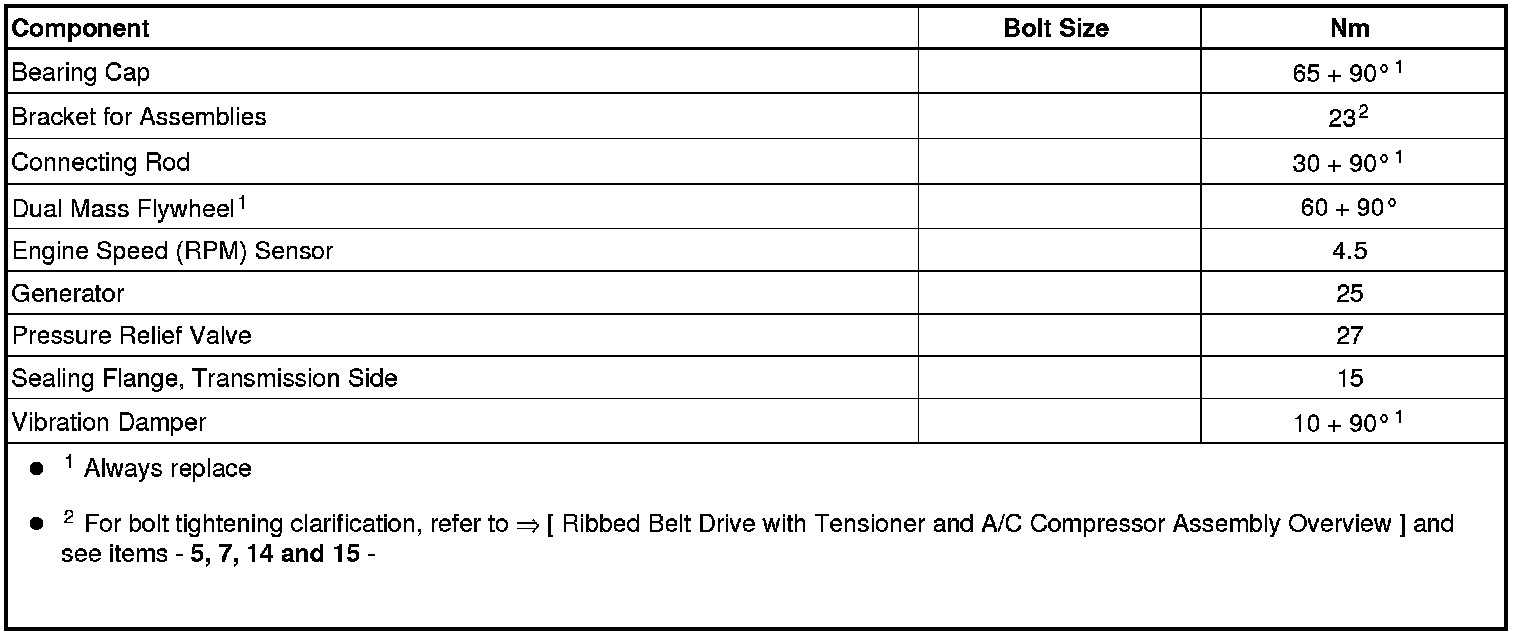

Fastener Tightening Specifications

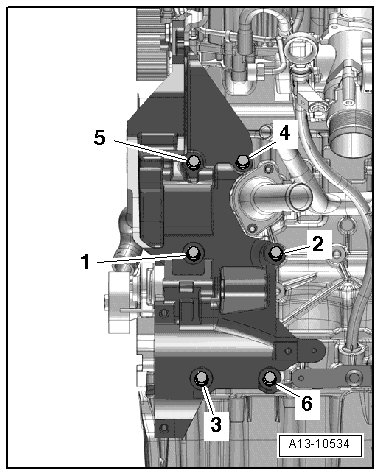

Accessory Assembly Bracket - Tightening Specifications and Tightening Sequence





- Replace the bolts for the auxiliary component bracket as follows:

• Bolts - 1 - and - 2 - M10 x 52.

• Bolts - 3 - and - 6 - M10 x 30.

• Bolts - 4 - and - 5 - M10 x 60.

- Tighten the auxiliary component bracket bolts in 2 steps in sequence - 1 through 6 -:

- Install the bolts all the way by hand.

- Tighten the bolts to 40 Nm.

- Tighten the bolts - 3 - and - 6 - 45° further.

- Tighten the bolts - 1, 2, 4 and 5 - 90° further.

Ribbed Belt Tensioning Roller - Tightening Specification and Sequence





• Replace the tensioning roller bolt.

• Apply some adhesive lubricating paste to the guide surfaces on the tensioning roller using a paint brush. For the adhesive lubricating paste, refer to the electronic parts catalog ETKA.

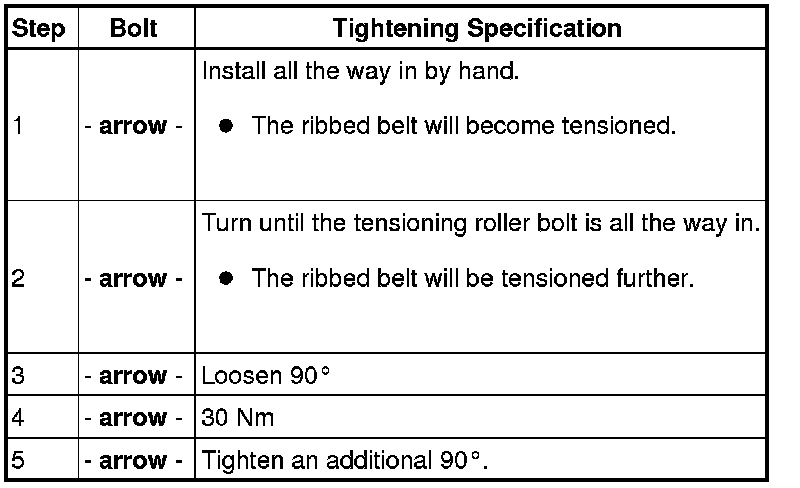

- Tighten the bolt in 5 steps:

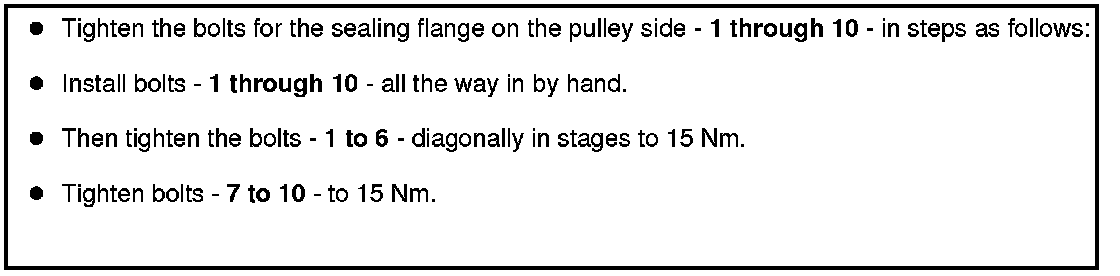

Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence

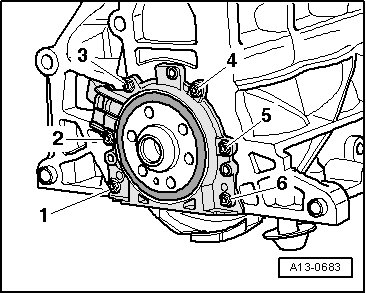

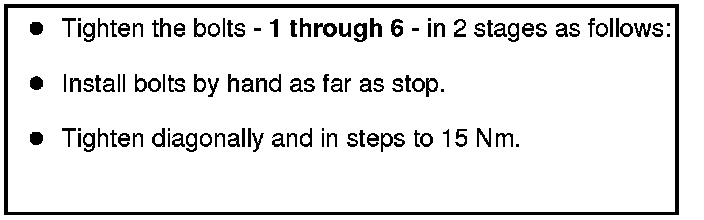

Ribbed Belt Transmission Side Sealing Flange - Tightening Specifications and Sequence
