Engine: Application and ID

Engine Number

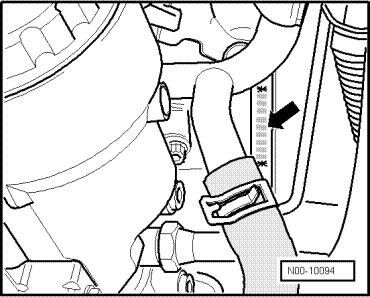

• The engine number (engine code and serial number) - arrow - is located at the front on the engine/transmission joint.





• In addition, a sticker with engine codes and serial number is affixed to the toothed belt guard.

• Engine codes beginning with C are four-digit.

• The first 3 digits of the engine code stand for displacement and the mechanical structure of the engine. They are stamped in the cylinder block, including the serial number.

• The fourth digit describes the engine output and torque and depends on the engine control module.

• The 4-digit engine code is on the type plate, vehicle data label and engine control module.
