Diagram 134/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


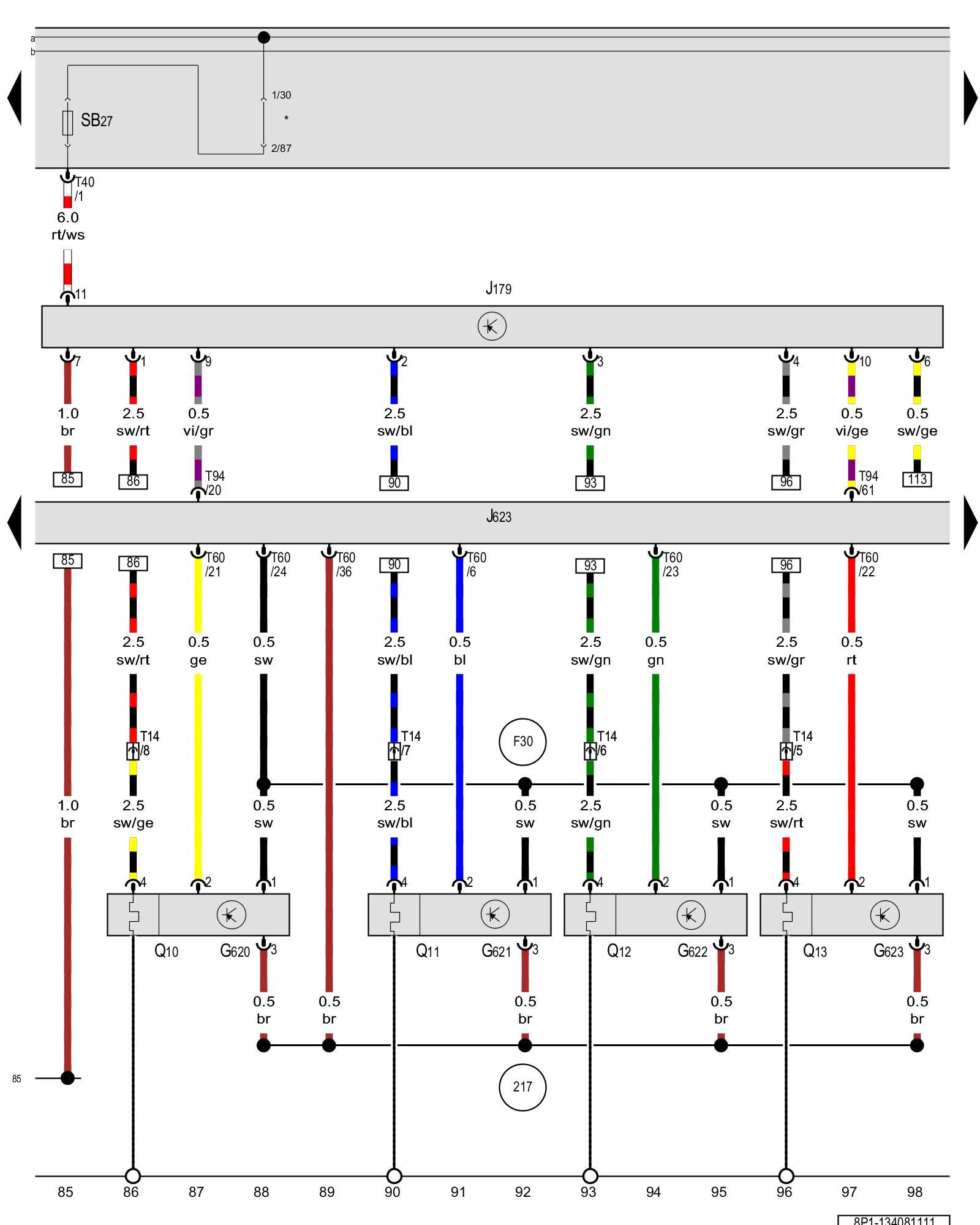

Automatic glow time control module, Engine control module, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G620 - Cylinder 1 internal pressure sensor 2.0L TDI CBEA

G621 - Cylinder 2 internal pressure sensor 2.0L TDI CBEA

G622 - Cylinder 3 internal pressure sensor 2.0L TDI CBEA

G623 - Cylinder 4 internal pressure sensor 2.0L TDI CBEA

J179 - Automatic glow time control module Overview Of Relay 2.0L TDI CBEA [1][2]Diagrams

J623 - Engine control module Control Modules in Front Part Of Vehicle

Q10 - Glow plug 1 2.0L TDI CBEA

Q11 - Glow plug 2 2.0L TDI CBEA

Q12 - Glow plug 3 2.0L TDI CBEA

Q13 - Glow plug 4 2.0L TDI CBEA

SB27 - Fuse 27 (on fuse panel B) Overview Of Fuses

T1g - Single connector

T14 - 14-pin connector, near the left front longitudinal member

T40 - 40-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

(85) - Ground connection 1 (in engine compartment wiring harness)

(217) - Ground connection 1 (in glow plug system wiring harness)

(F30) - Connection 1 (in glow plug system wiring harness)

* - Contact bridge, only vehicles with diesel engine

Previous Diagram 134/7 (Tracks 71-84)

Next Diagram 134/9 (Tracks 99-112)
