Diagram 134/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

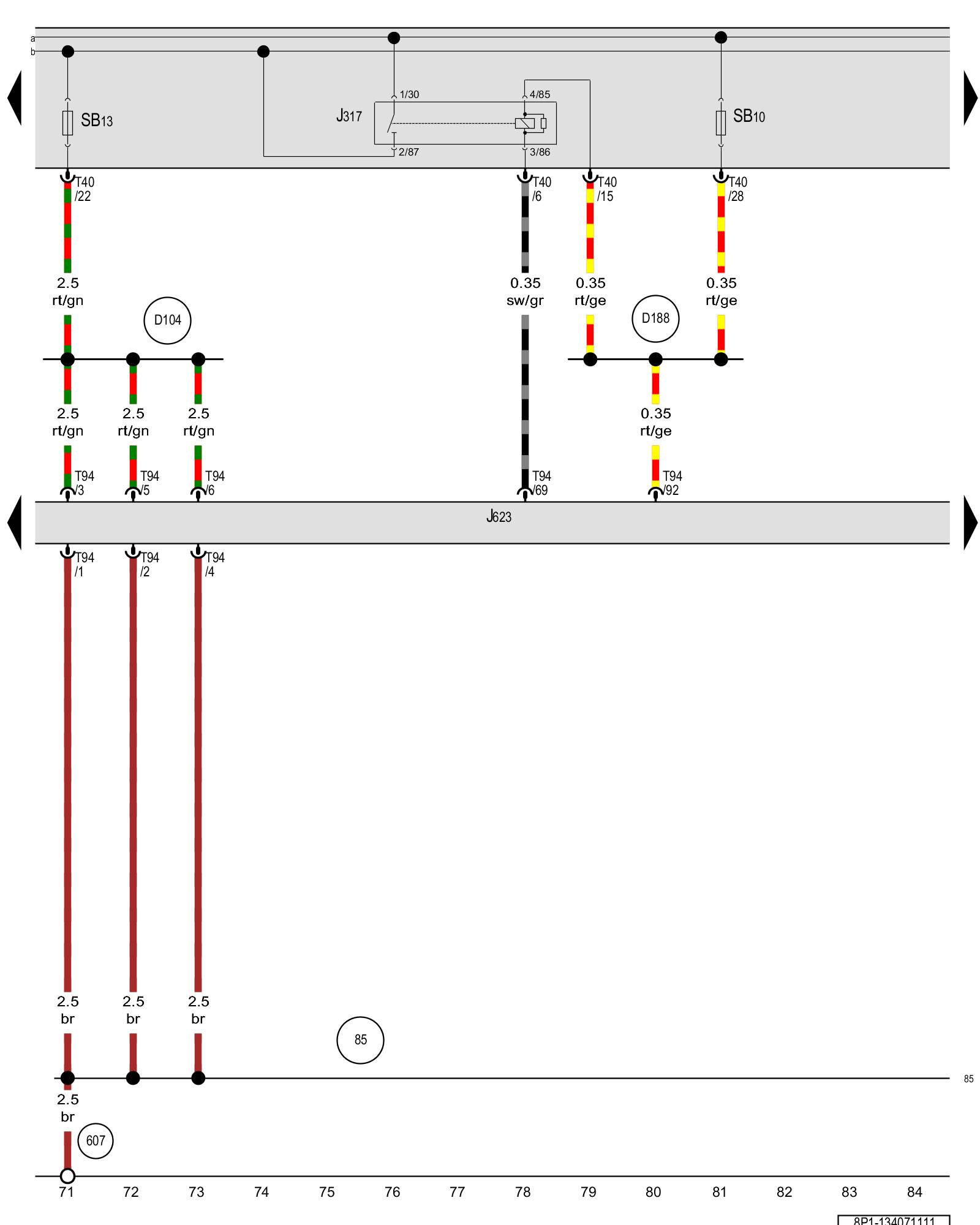

Terminal 30 power supply relay, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J317 - Terminal 30 power supply relay Overview Of Relay

J623 - Engine control module Control Modules in Front Part Of Vehicle

SB10 - Fuse 10 (on fuse panel B) Overview Of Fuses

SB13 - Fuse 13 (on fuse panel B) Overview Of Fuses

T40 - 40-pin connector

T94 - 94-pin connector

(85) - Ground connection 1 (in engine compartment wiring harness)

(607) - Ground connection in plenum chamber, left Overview Of Ground Connections in Front Part Of Vehicle

(D104) - Positive connection 2 (30a) (in engine compartment wiring harness)

(D188) - Positive connection 3 (30a) (in engine compartment wiring harness)

Previous Diagram 134/6 (Tracks 57-70)

Next Diagram 134/8 (Tracks 85-98)
