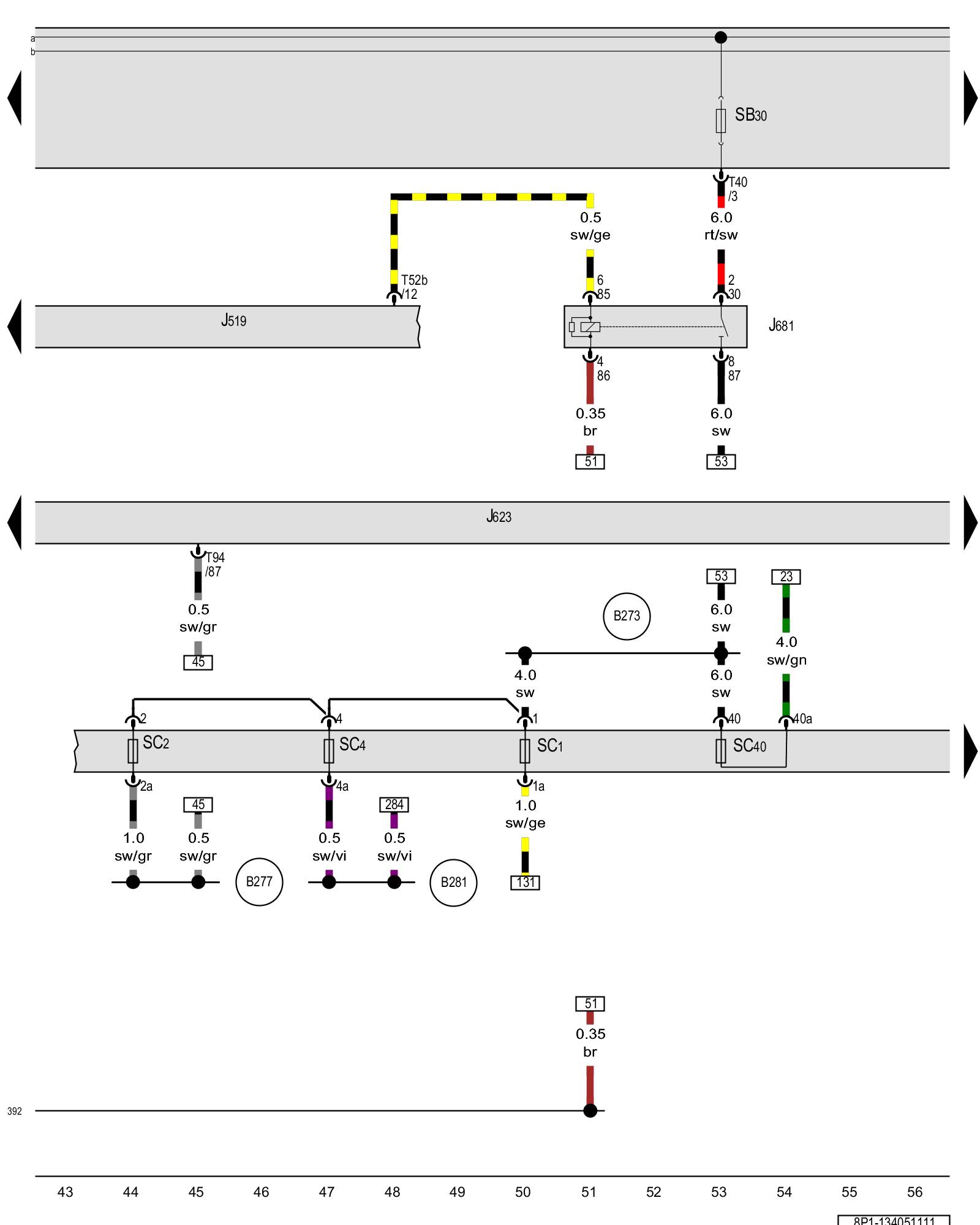

Diagram 134/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Vehicle electrical system control module, Engine control module, Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

J681 - Terminal 15 power supply relay 2 Overview Of Relay

SC1 - Fuse 1 (on fuse panel C) Overview Of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SC40 - Fuse 40 (on fuse panel C) Overview Of Fuses

T40 - 40-pin connector

T52b - 52-pin connector

T94 - 94-pin connector

(392) - Ground connection 27 (in main wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

(B277) - Positive connection 1 (15a) (in main wiring harness)

(B281) - Positive connection 5 (15a) (in main wiring harness)
