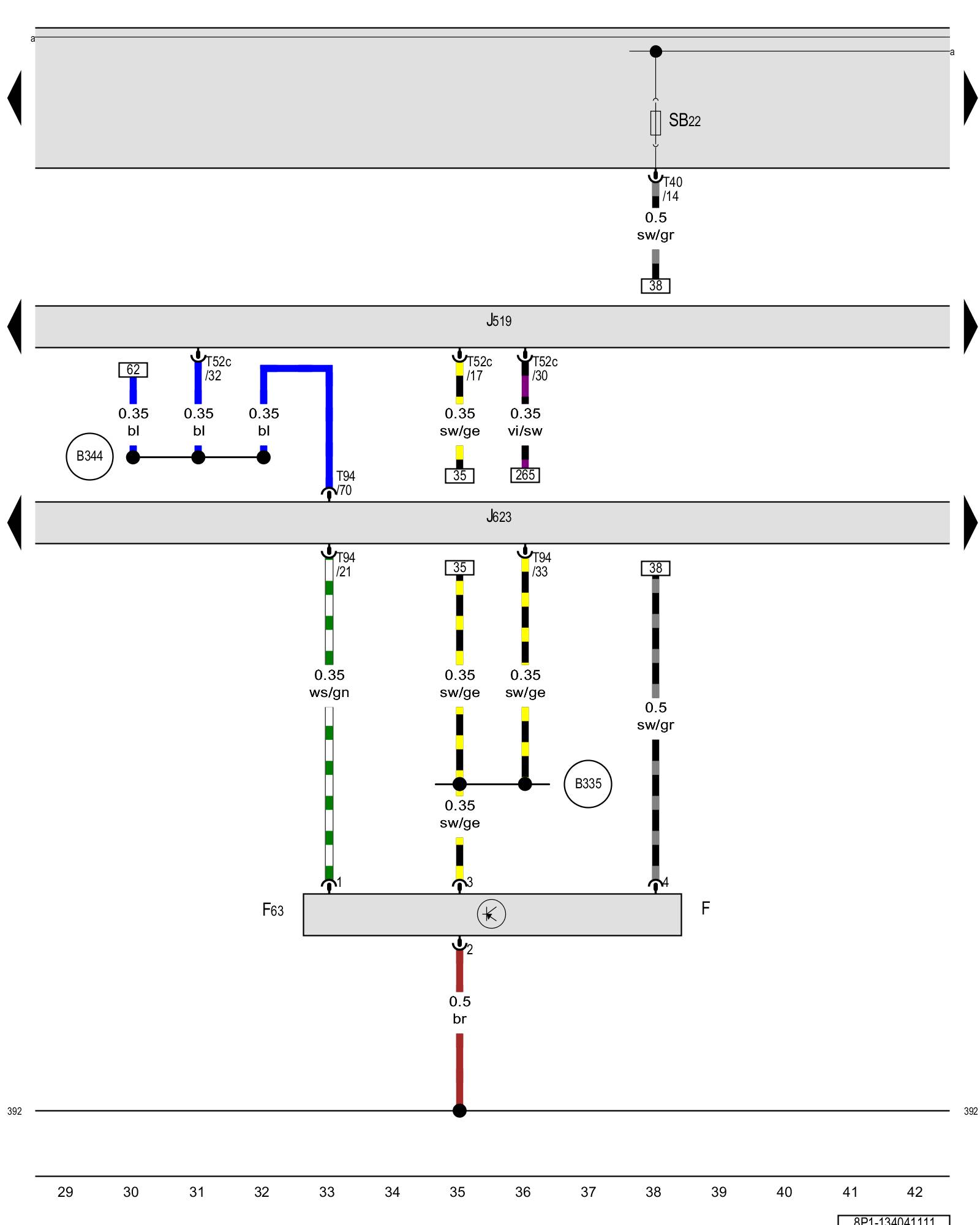

Diagram 134/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Brake pedal switch, Vehicle electrical system control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations [1][2]Brake Light Switch

F63 - Brake pedal switch Locations [1][2]Brake Light Switch

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

SB22 - Fuse 22 (on fuse panel B) Overview Of Fuses

T40 - 40-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

(392) - Ground connection 27 (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

(B344) - Connection 1 (61) (in main wiring harness)
