Diagram 134/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

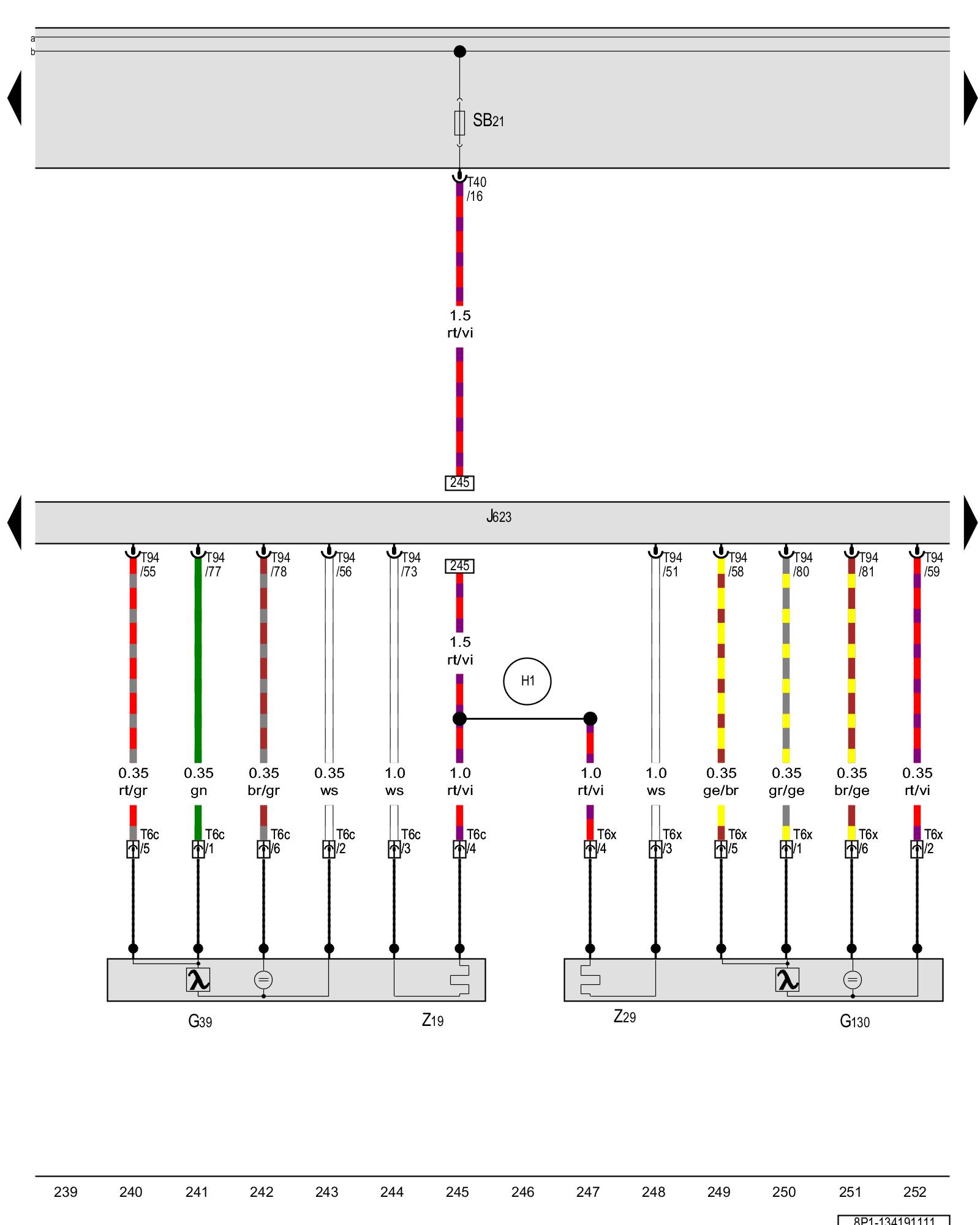

Heated oxygen sensor, Oxygen sensor after three way catalytic converter, Engine control module, Oxygen sensor heater, Heater for oxygen sensor 1 after catalytic converter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

G130 - Oxygen sensor after three way catalytic converter Locations Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-

J623 - Engine control module Control Modules in Front Part Of Vehicle

SB21 - Fuse 21 (on fuse panel B) Overview Of Fuses

T6c - 6-pin connector, on the oxygen sensor before the catalytic converter

T6x - 6-pin connector

T40 - 40-pin connector

T94 - 94-pin connector

Z19 - Oxygen sensor heater Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

Z29 - Heater for oxygen sensor 1 after catalytic converter Locations Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-

(H1) - Positive connection (in oxygen sensor wiring harness)

Previous Diagram 134/18 (Tracks 225-238)

Next Diagram 134/20 (Tracks 253-266)
