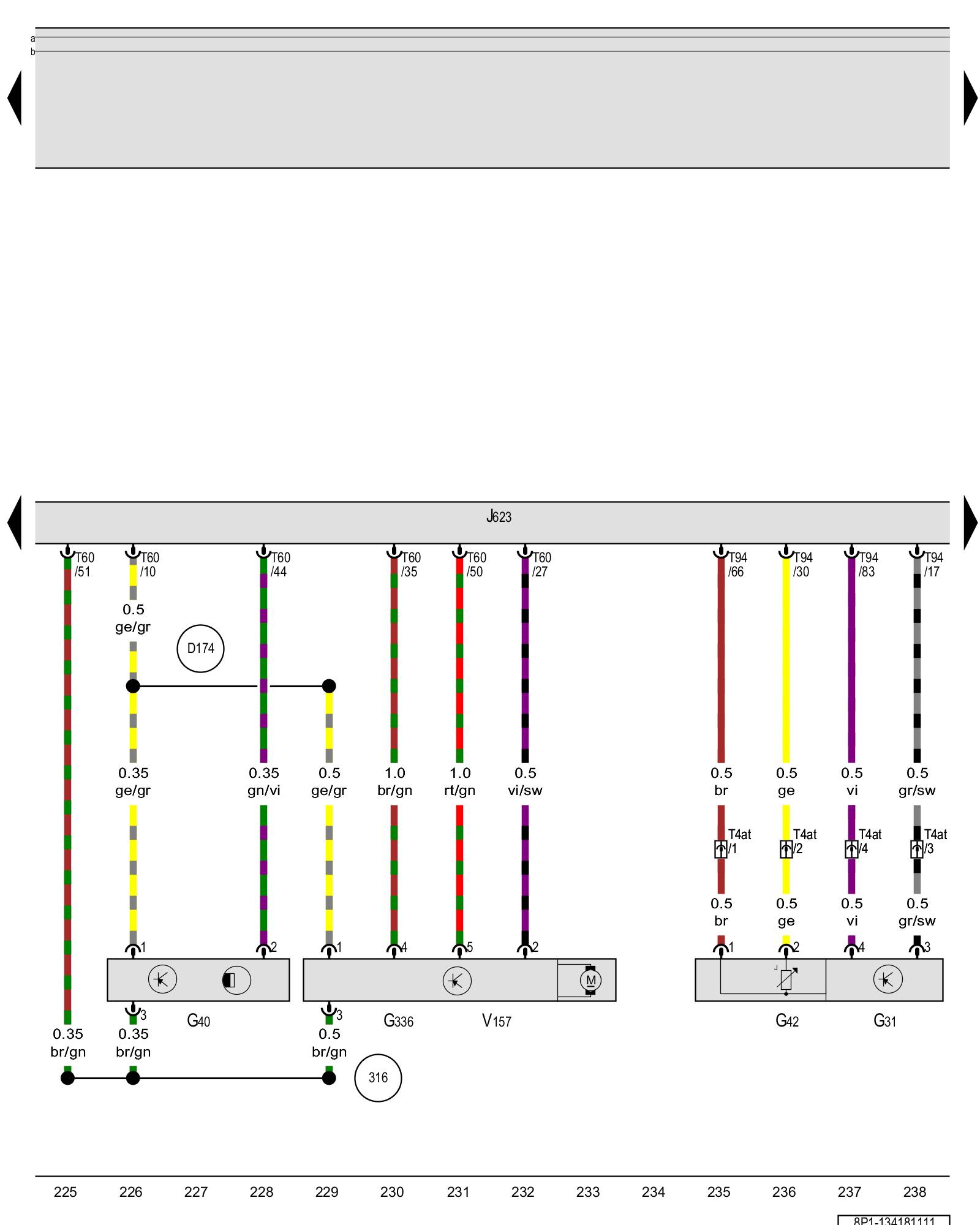

Diagram 134/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Charge air pressure sensor, Camshaft position sensor, Intake air temperature sensor, Intake manifold runner position sensor, Engine control module, Intake flap motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge air pressure sensor Locations [1][2]Air Temperature Sensor ( Ambient / Intake )

G40 - Camshaft position sensor Locations Camshaft Position Sensor -G40-

G42 - Intake air temperature sensor Locations [1][2]Air Temperature Sensor ( Ambient / Intake )

G336 - Intake manifold runner position sensor Locations [1][2]Diagrams

J623 - Engine control module Control Modules in Front Part Of Vehicle

T4at - 4-pin connector, near the starter

T60 - 60-pin connector

T94 - 94-pin connector

V157 - Intake flap motor Locations [1][2]Diagrams

(316) - Sensor ground connection 2 (in engine wiring harness)

(D174) - Connection 2 (5V) (in engine wiring harness)
