Diagram 134/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

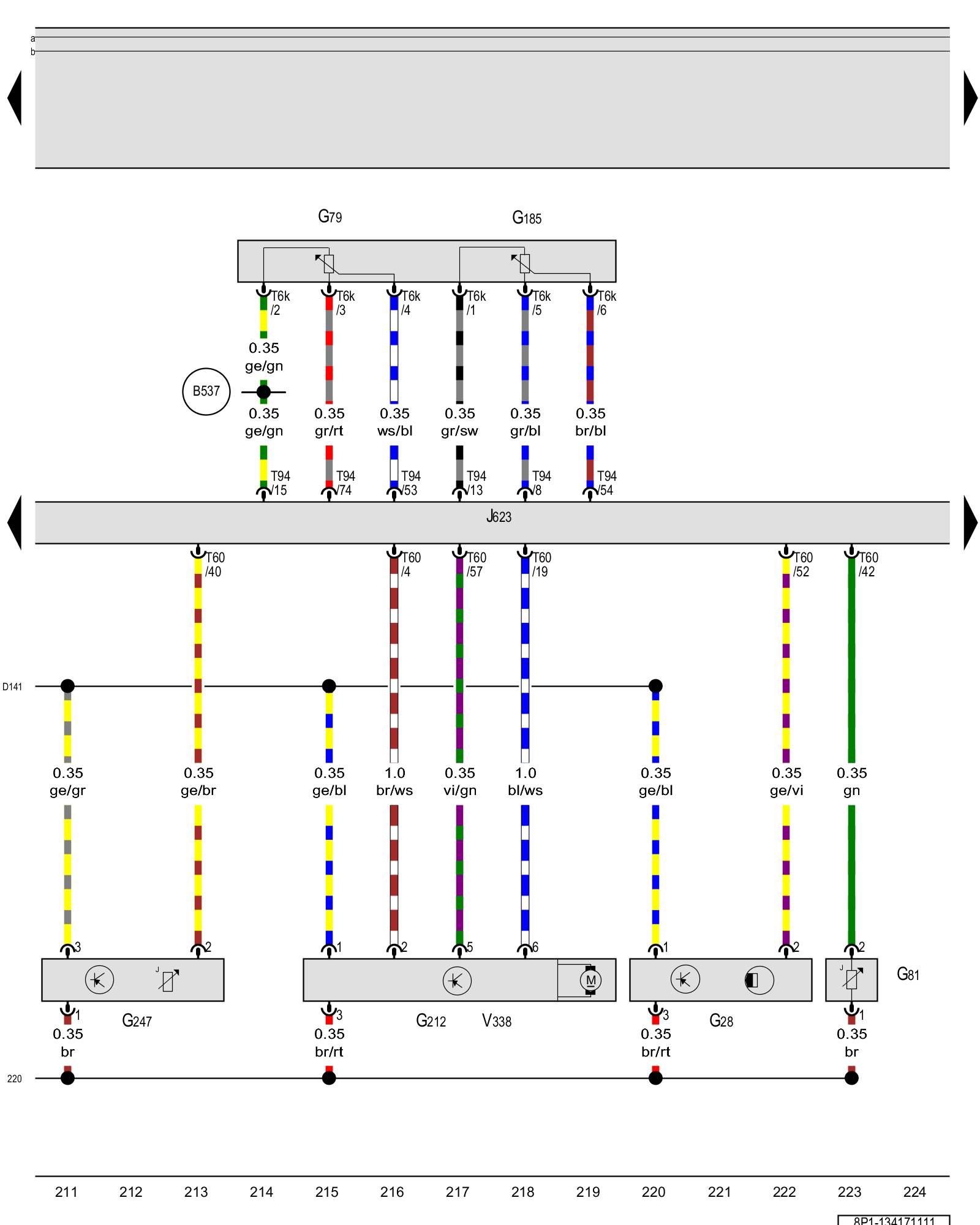

Engine speed sensor, Accelerator pedal position sensor, Fuel temperature sensor, Accelerator pedal position sensor 2, EGR potentiometer, Fuel pressure sensor, Engine control module, EGR motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor Locations [1][2]Diagrams

G79 - Accelerator pedal position sensor Locations [1][2]Accelerator Pedal Position Sensor

G81 - Fuel temperature sensor 2.0L TDI CBEA [1][2]Diagrams

G185 - Accelerator pedal position sensor 2 Locations [1][2]Accelerator Pedal Position Sensor

G212 - EGR potentiometer 2.0L TDI CBEA

G247 - Fuel pressure sensor Locations Fuel Pressure Sensor -G247-

J623 - Engine control module Control Modules in Front Part Of Vehicle

T6k - 6-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

V338 - EGR motor 2.0L TDI CBEA

(220) - Sensor ground connection (in engine compartment wiring harness)

(B537) - Connection 28 (in main wiring harness)

(D141) - Connection (5V) (in engine wiring harness)

Previous Diagram 134/16 (Tracks 197-210)

Next Diagram 134/18 (Tracks 225-238)
