Diagram 134/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

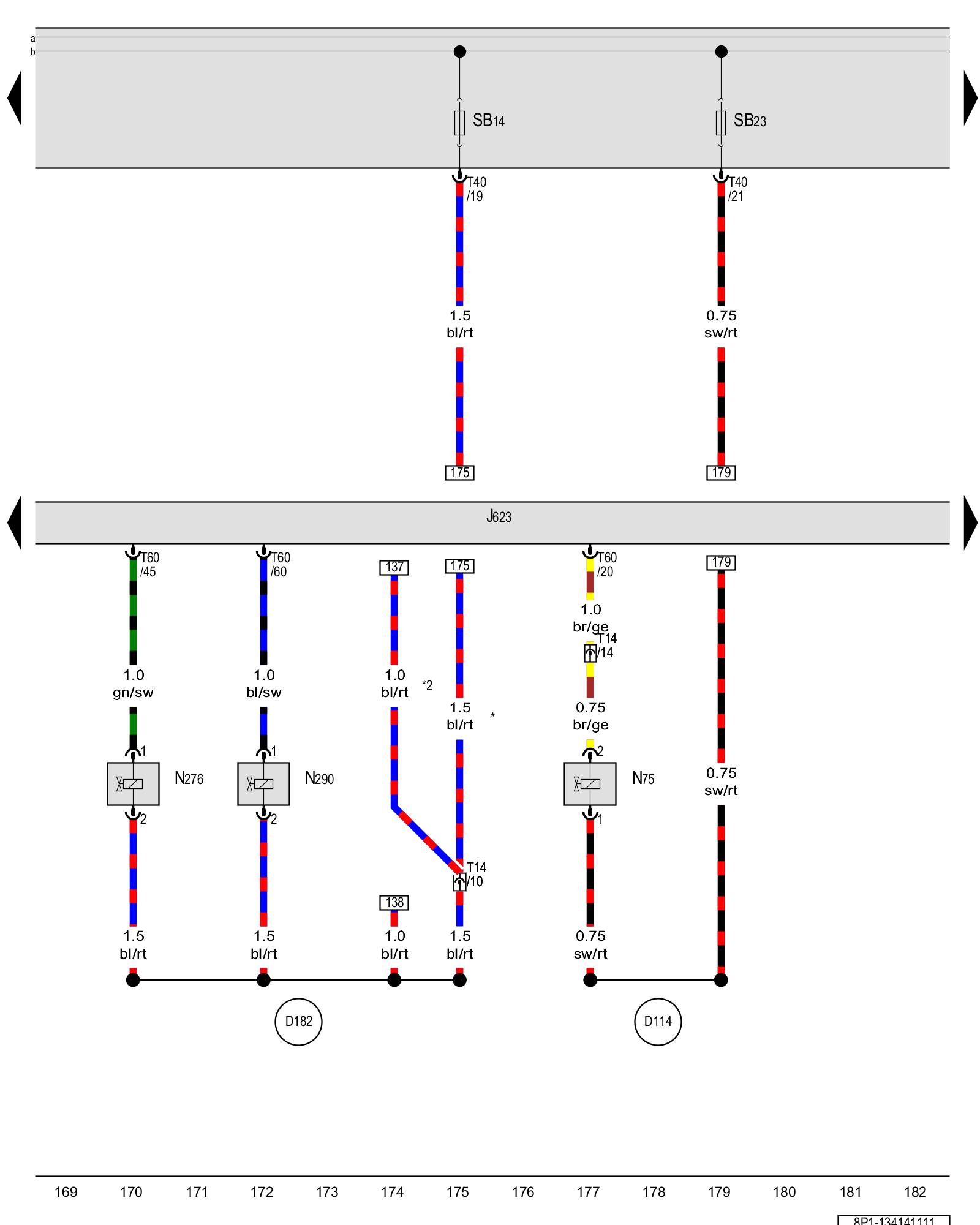

Engine control module, Wastegate bypass regulator valve, Fuel pressure regulator valve, Fuel metering valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control Modules in Front Part Of Vehicle

N75 - Wastegate bypass regulator valve Locationsm [1][2]Diagrams

N276 - Fuel pressure regulator valve Locations [1][2]Diagrams

N290 - Fuel metering valve 2.0L TDI CBEA Fuel Metering Valve -N290-

SB14 - Fuse 14 (on fuse panel B) Overview Of Fuses

SB23 - Fuse 23 (on fuse panel B) Overview Of Fuses

T14 - 14-pin connector, near the left front longitudinal member

T40 - 40-pin connector

T60 - 60-pin connector

(D114) - Connection (12) (in engine compartment wiring harness)

(D182) - Connection 3 (87a) (in engine compartment wiring harness)

* - Through April 2011

*2 - From May 2011

Previous Diagram 134/13 (Tracks 155-168)

Next Diagram 134/15 (Tracks 183-196)
