Diagram 134/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

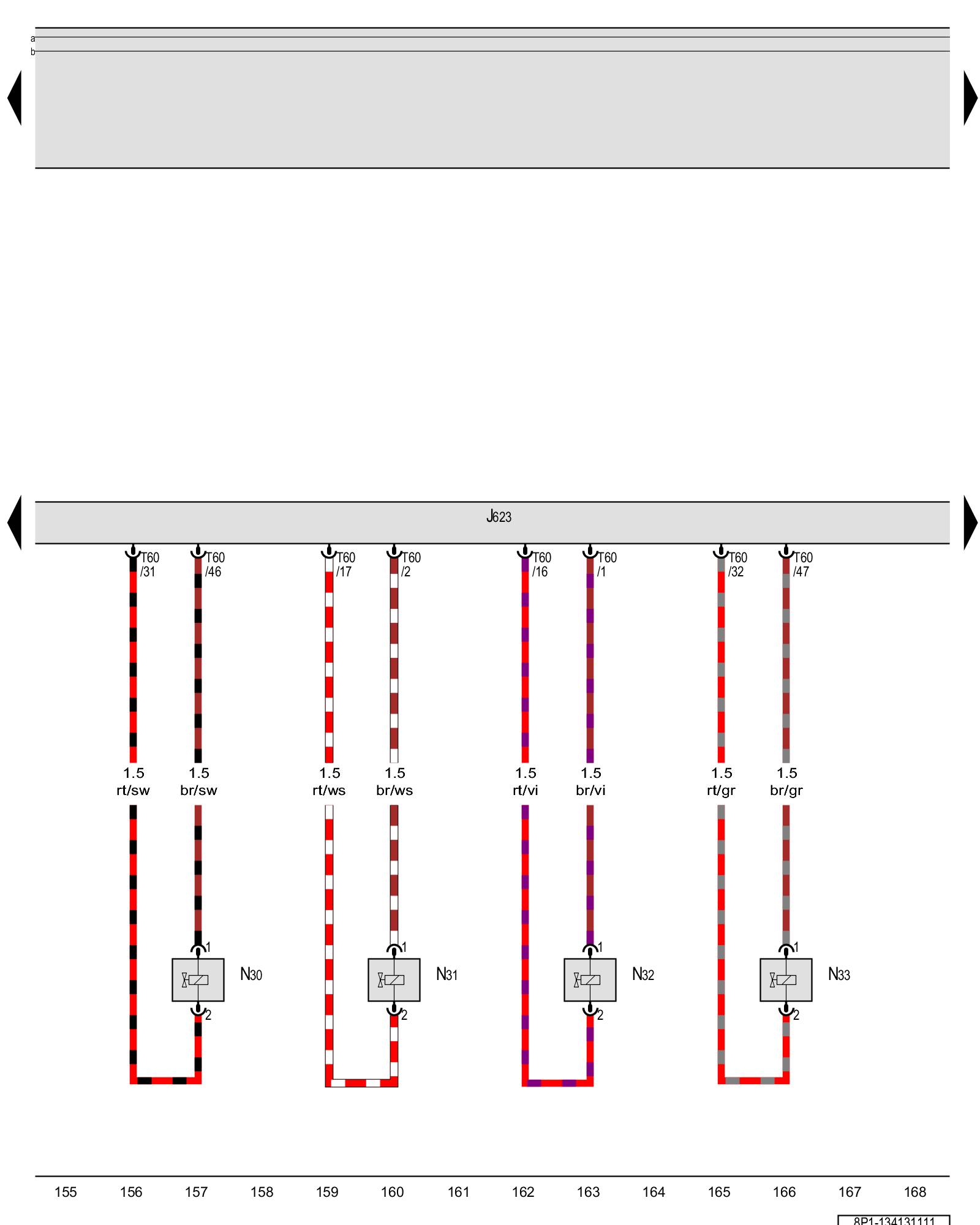

Engine control module, Cylinder 1 fuel injector, Cylinder 2 fuel injector, Cylinder 3 fuel injector, Cylinder 4 fuel injector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control Modules in Front Part Of Vehicle

N30 - Cylinder 1 fuel injector Locations Fuel Injectors

N31 - Cylinder 2 fuel injector Locations Fuel Injectors

N32 - Cylinder 3 fuel injector Locations Fuel Injectors

N33 - Cylinder 4 fuel injector Locations Fuel Injectors

T60 - 60-pin connector
