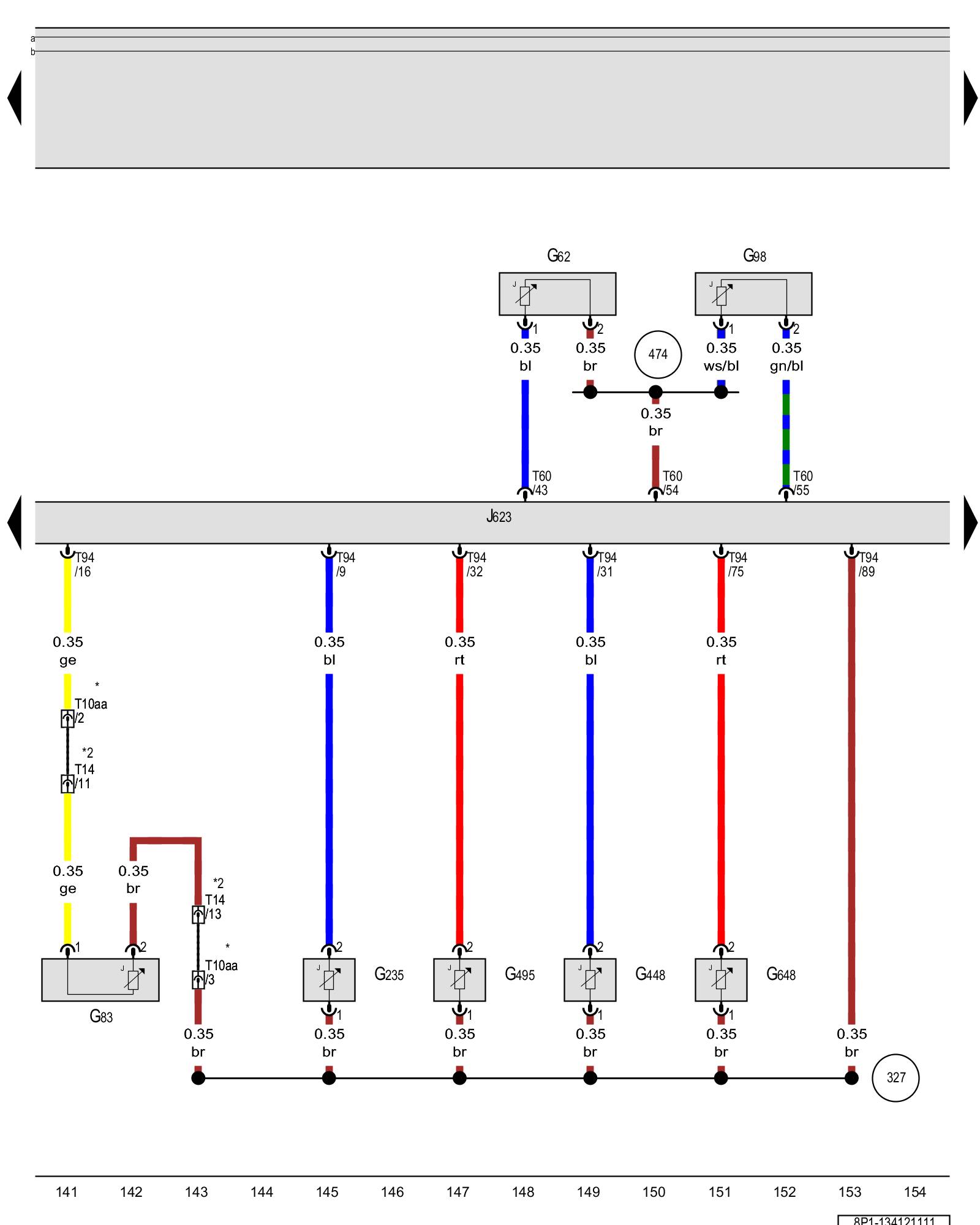

Diagram 134/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Engine coolant temperature sensor, Engine coolant temperature sensor on radiator outlet, EGR temperature sensor, Exhaust gas temperature sensor 1, Exhaust gas temperature sensor 2, Exhaust gas temperature sensor 3, Exhaust gas temperature sensor 4, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G62 - Engine coolant temperature sensor Locations Engine Coolant Temperature Sensor -G62-

G83 - Engine coolant temperature sensor on radiator outlet Locations Engine Coolant Temperature Sensor On Radiator -G83-

G98 - EGR temperature sensor Locations [1][2]Diagrams

G235 - Exhaust gas temperature sensor 1 Locations Exhaust Gas Temperature Sensor 1 -G235-

G448 - Exhaust gas temperature sensor 2 Locations Exhaust Gas Temperature Sensor 2 -G448-

G495 - Exhaust gas temperature sensor 3 Locations Exhaust Gas Temperature Sensor 3 -G495-

G648 - Exhaust gas temperature sensor 4 Locations Exhaust Gas Temperature Sensor 4 -G648-

J623 - Engine control module Control Modules in Front Part Of Vehicle

T10aa - 10-pin connector, in the engine compartment, left

T14 - 14-pin connector, near the left front longitudinal member

T60 - 60-pin connector

T94 - 94-pin connector

(327) - Sensor ground connection (in engine compartment wiring harness)

(474) - Sensor ground connection (in engine wiring harness)

* - Through April 2011

*2 - From May 2011

Previous Diagram 134/11 (Tracks 127-140)

Next Diagram 134/13 (Tracks 155-168)
