Diagram 59/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

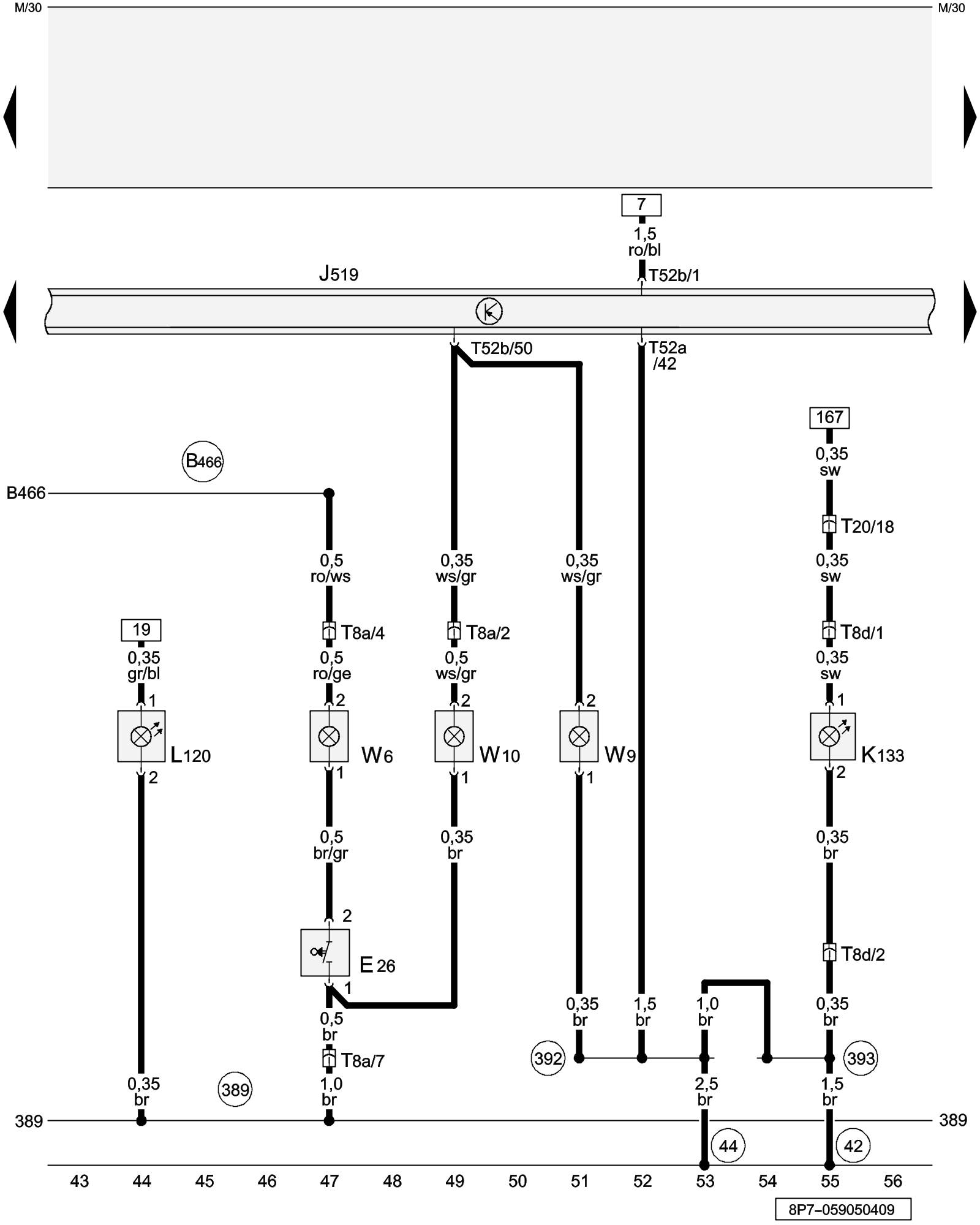

Storage Compartment Illumination, Footwell Lights, Glove Compartment Light, Central Locking -SAFE- Indicator Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E26 - Glove Compartment Lamp Switch

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

K133 - Central Locking -SAFE- Indicator Lamp

L120 - Storage Compartment Illumination

T8a - 8-Pin Connector, black, near glove compartment

T8d - 8-Pin Connector, black, behind center console

T20 - 20-Pin Connector, black, door A-pillar, left

T52a - 52-Pin Connector, black (Connector A)

T52b - 52-Pin Connector, white (Connector B)

W6 - Glove Compartment Light

W9 - Left Footwell Light

W10 - Right Footwell Light

(42) - Ground Connection (beside steering column)

(44) - Ground Connection (on left lower A-pillar)

(389) - Ground Connection 24 (in main wiring harness)

(392) - Ground Connection 27 (in main wiring harness)

(393) - Ground Connection 28 (in main wiring harness)

(B466) - Connection 2 (in main wiring harness)

Previous Diagram 59/4 (Tracks 29-42)

Next Diagram 59/6 (Tracks 57-70)
