Diagram 59/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

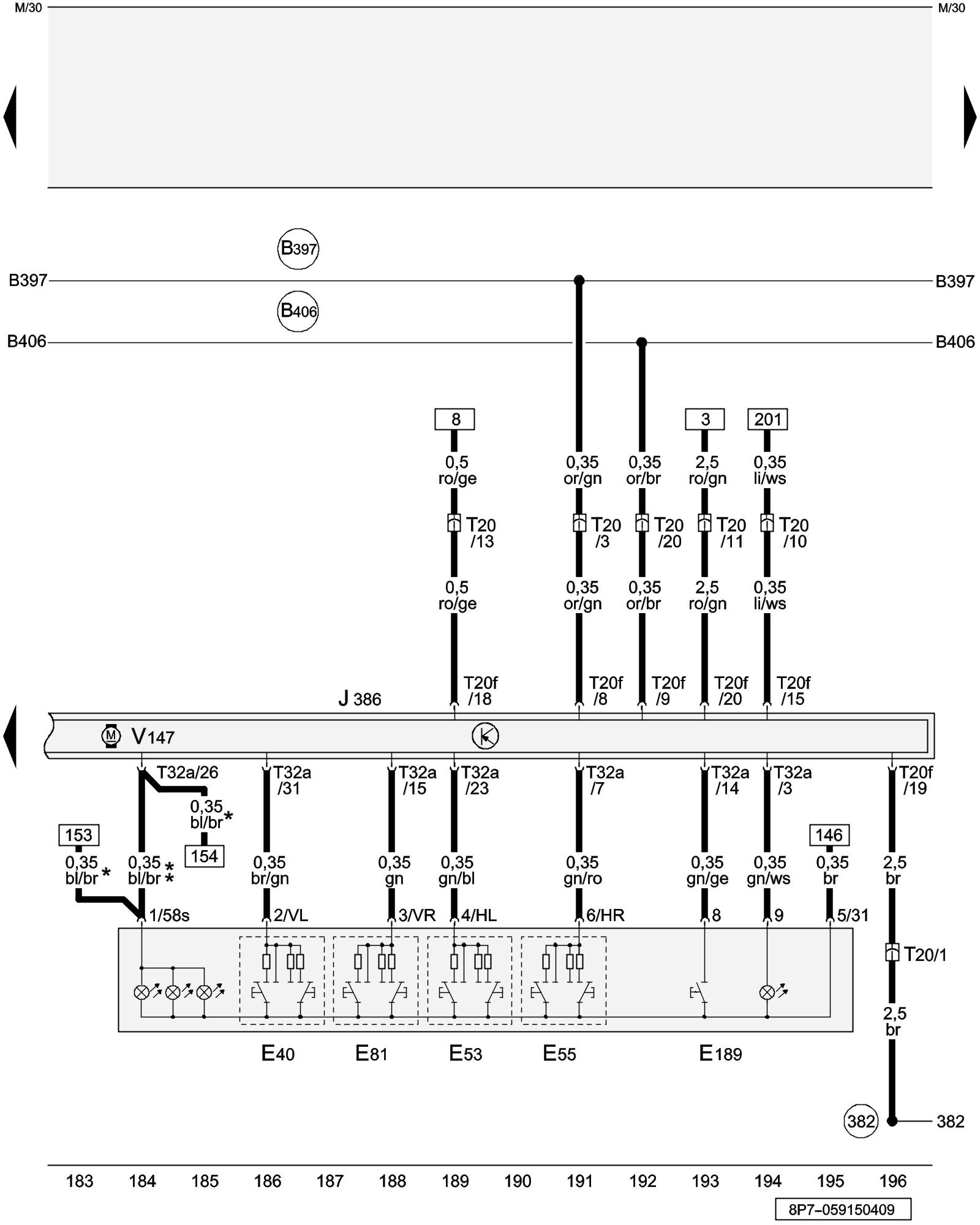

Driver's Window Regulator Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E40 - Left Front Window Regulator Switch

E53 - Driver's Left Rear Window Regulator Switch

E55 - Driver's Right Rear Window Regulator Switch

E81 - Driver's Right Front Window Regulator Switch

E189 - Central Window Regulator Switch (in driver's door)

J386 - Driver's Door Control Module Control Modules in Interior Of Vehicle

T20 - 20-Pin Connector, black, door A-pillar, left

T20f - 20-Pin Connector, black (Connector A)

T32a - 32-Pin Connector, grey (Connector C)

V147 - Driver's Window Regulator Motor

(382) - Ground Connection 17 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with interior monitoring

** - Only models without interior monitoring

Previous Diagram 59/14 (Tracks 169-182)

Next Diagram 59/16 (Tracks 197-210)
