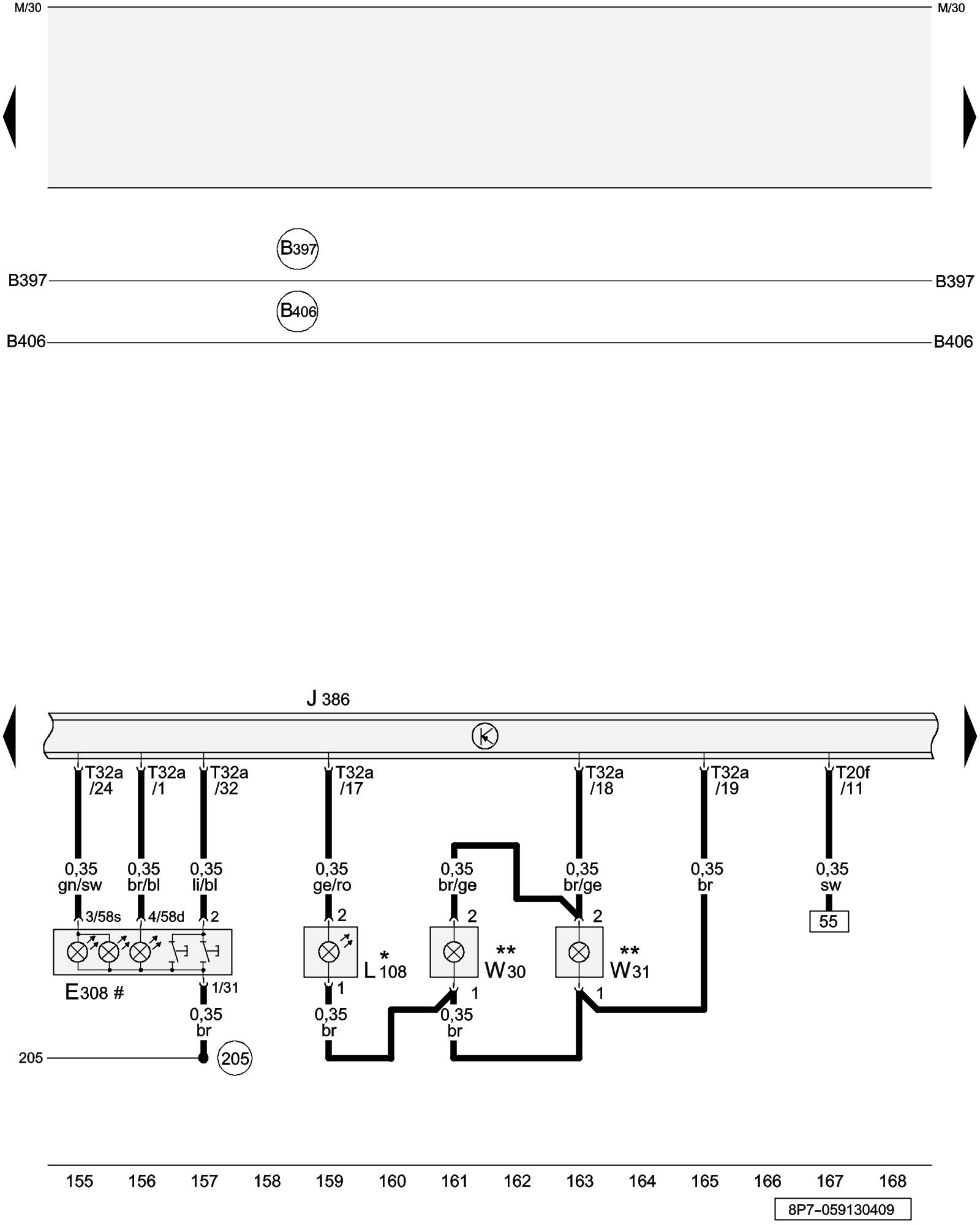

Diagram 59/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Left Front Entry Light, Driver's Interior Locking Button, Driver's Door Warning Light, Driver's Door Opener Illumination





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E308 - Driver's Interior Locking Button

J386 - Driver's Door Control Module Control Modules in Interior Of Vehicle

L108 - Driver's Door Opener Illumination

T20f - 20-Pin Connector, black (Connector A)

T32a - 32-Pin Connector, grey (Connector C)

W30 - Driver's Door Warning Light

W31 - Left Front Entry Light

(205) - Ground Connection (in Driver's door wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with door opener illumination

** - Only models with entry and door warning light

# - E308 replace E150
