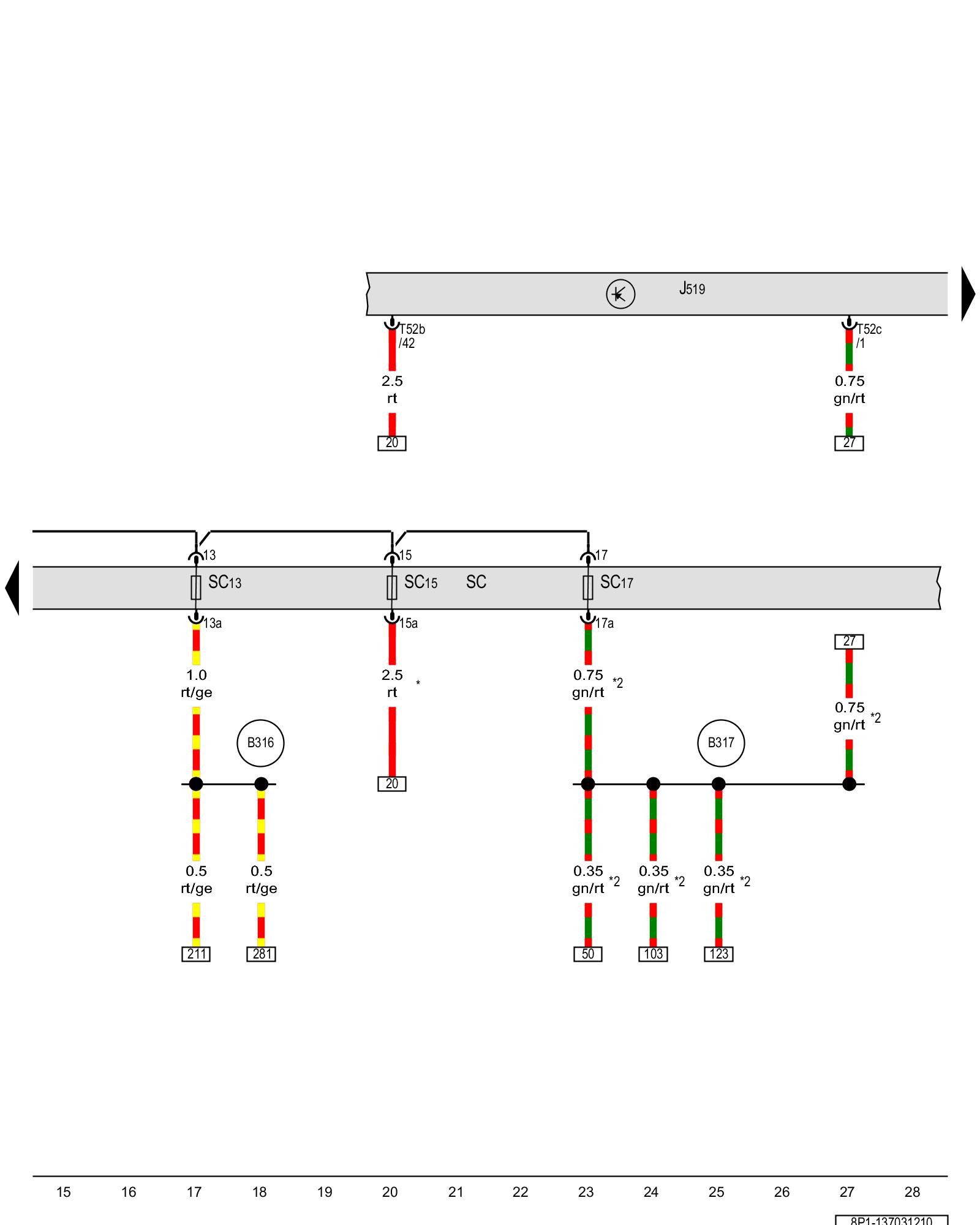

Diagram 137/3 (Tracks 15-28)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams
Fuse panel C
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle
SC - Fuse panel C Overview Of Fuses
SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses
SC15 - Fuse 15 (on fuse panel C) Overview Of Fuses
SC17 - Fuse 17 (on fuse panel C) Overview Of Fuses
T52b - 52-pin connector
T52c - 52-pin connector
(B316) - Positive connection 2 (30a) (in main wiring harness)
(B317) - Positive connection 3 (30a) (in main wiring harness)
* - Depending on equipment
*2 - For vehicles with anti-theft alarm system
