Diagram 92/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

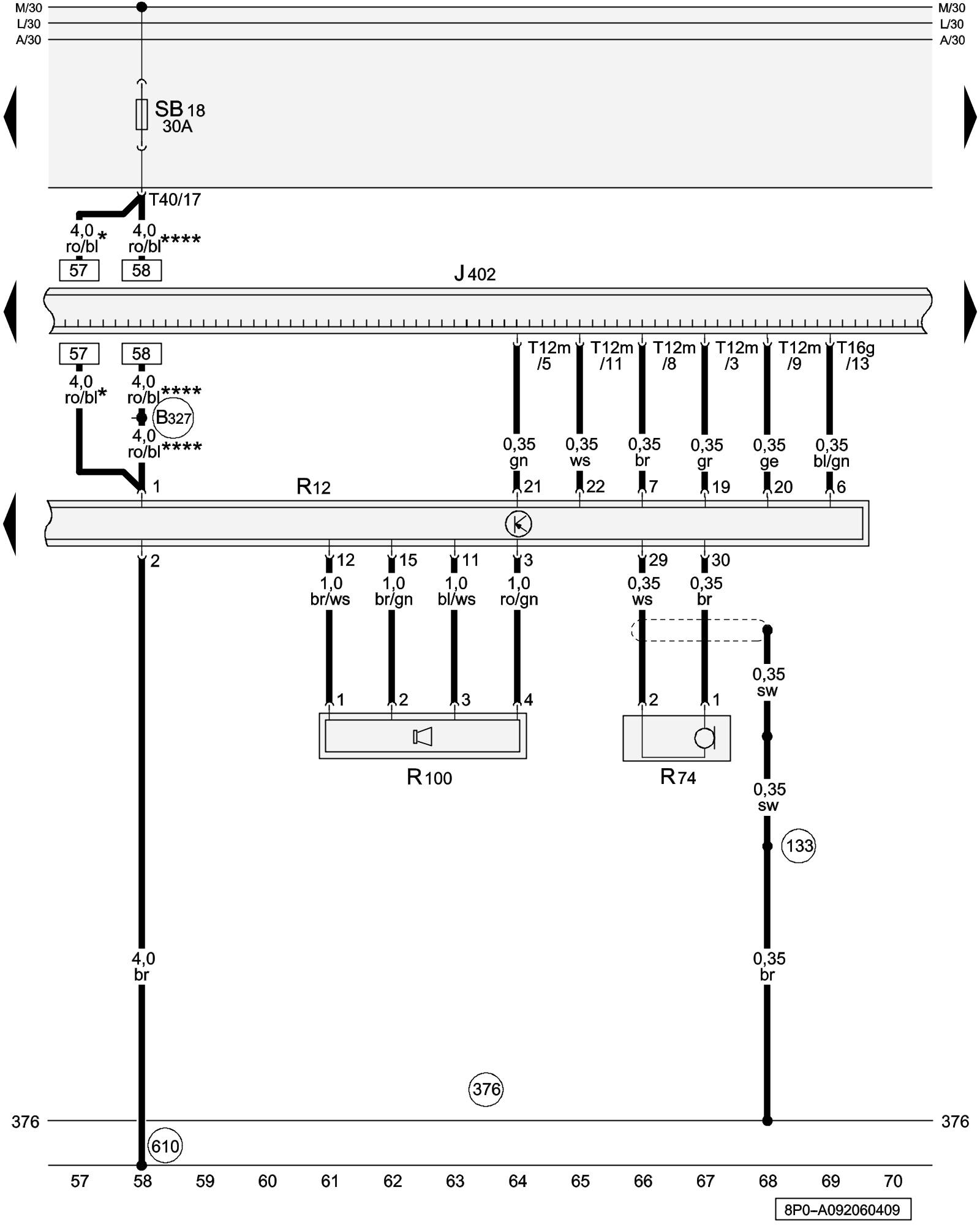

Inside Microphone, Bass Speaker with BOSE system





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Navigation System Operating Electronics Control Module Control Modules in Interior Of Vehicle

R12 - Amplifier Radio System Component Overview

R74 - Inside Microphone Radio System Component Overview

R100 - Bass Speaker

SB18 - Fuse 18 (on fuse panel B) Overview Of Fuses

T12m - 12-Pin Connector, black (Connector C) (connector locking green)

T16g - 16-Pin Connector, black (Connector D)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(133) - Ground Connection (in speaker wiring harness)

(376) - Ground Connection 11 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview Of Ground Connections in Interior Of Vehicle

(B327) - Plus Connection 13 (30a) (in main wiring harness)

* - Not applicable from May 2009

**** - Applicable from May 2009
