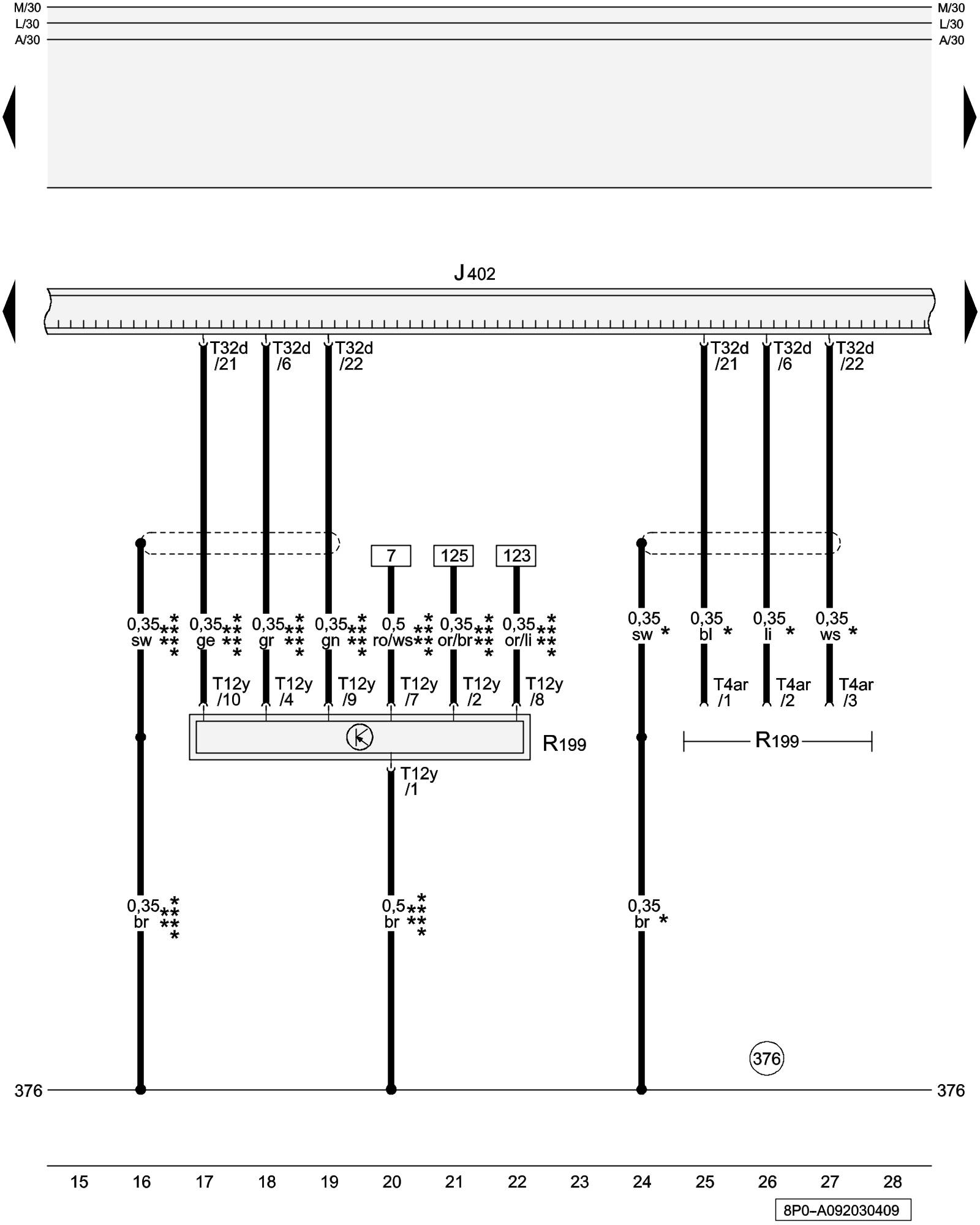

Diagram 92/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


External Audio Source Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Navigation System Operating Electronics Control Module Control Modules in Interior Of Vehicle

R199 - External Audio Source Connector Radio System Component Overview Control Modules in Interior Of Vehicle

T4ar - 4-Pin Connector

T12y - 12-Pin Connector, black (Connector A)

T32d - 32-Pin Connector, grey (Connector E)

(376) - Ground Connection 11 (in main wiring harness)

* - Only models with AUX-IN Socket

** - Only models with Audi Music Interface (AMI)

**** - Applicable from May 2009
