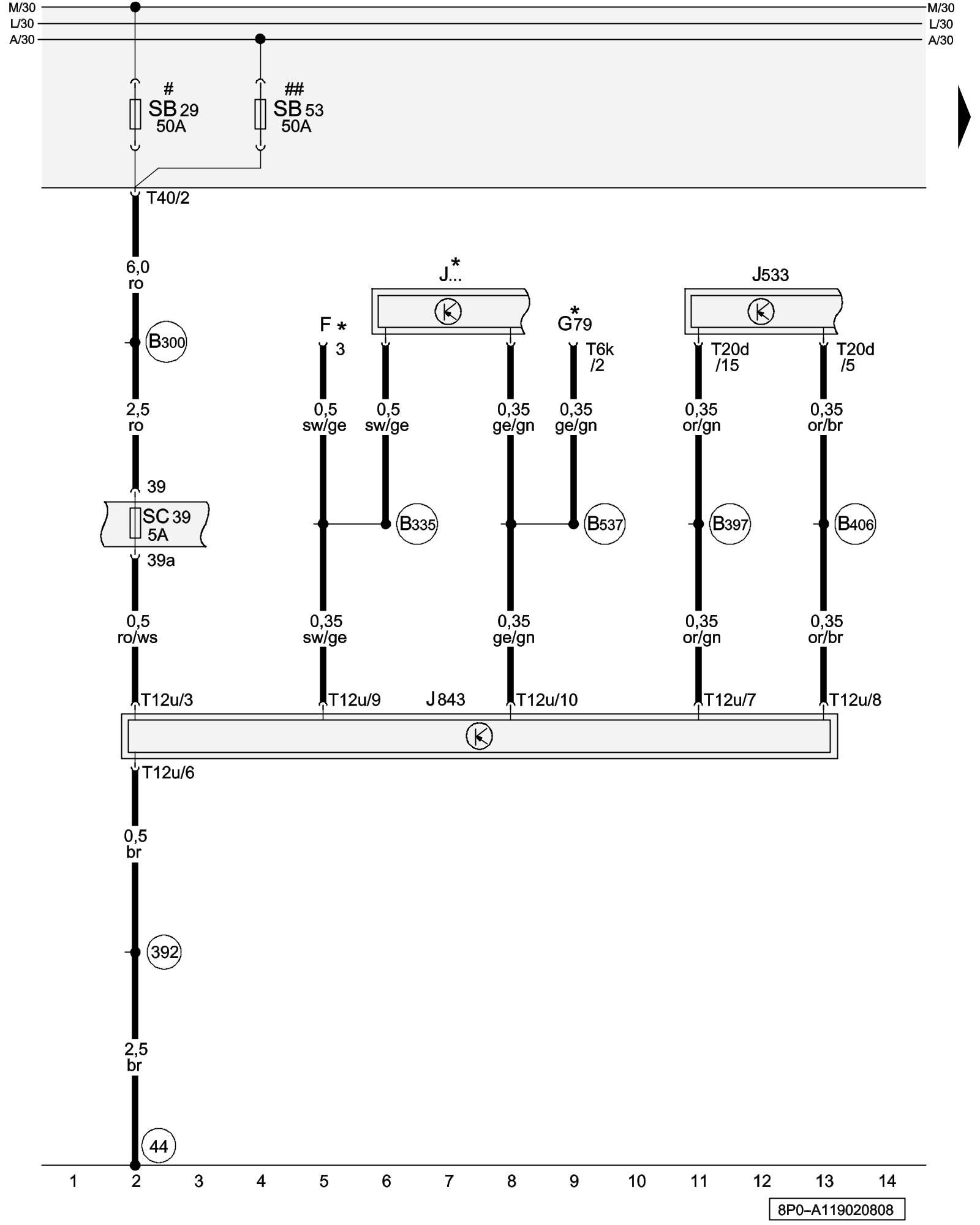

Diagram 119/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Fuses (on fuse panel), Special Functions Interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations [1][2]Brake Light Switch

G79 - Throttle Position (TP) Sensor Locations [1][2]Accelerator Pedal Position Sensor

J... - Engine Control Modules (ECM)

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior Of Vehicle

J843 - Models Location System Control Module Interface

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

SB53 - Fuse 53 (on fuse panel B) Overview Of Fuses

SC39 - Fuse 39 (on fuse panel C) Overview Of Fuses

T6k - 6-Pin Connector, black, near throttle position (TP) sensor

T12u - 12-Pin Connector, brown (Connector B)

T20d - 20-Pin Connector, black (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(44) - Ground Connection (on left lower A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(392) - Ground Connection 27 (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

(B537) - Connection 28 (in main wiring harness)

* - => Applicable Wiring Diagram Engine

# - Only models with electronics box Low

## - Only models with electronics box High
