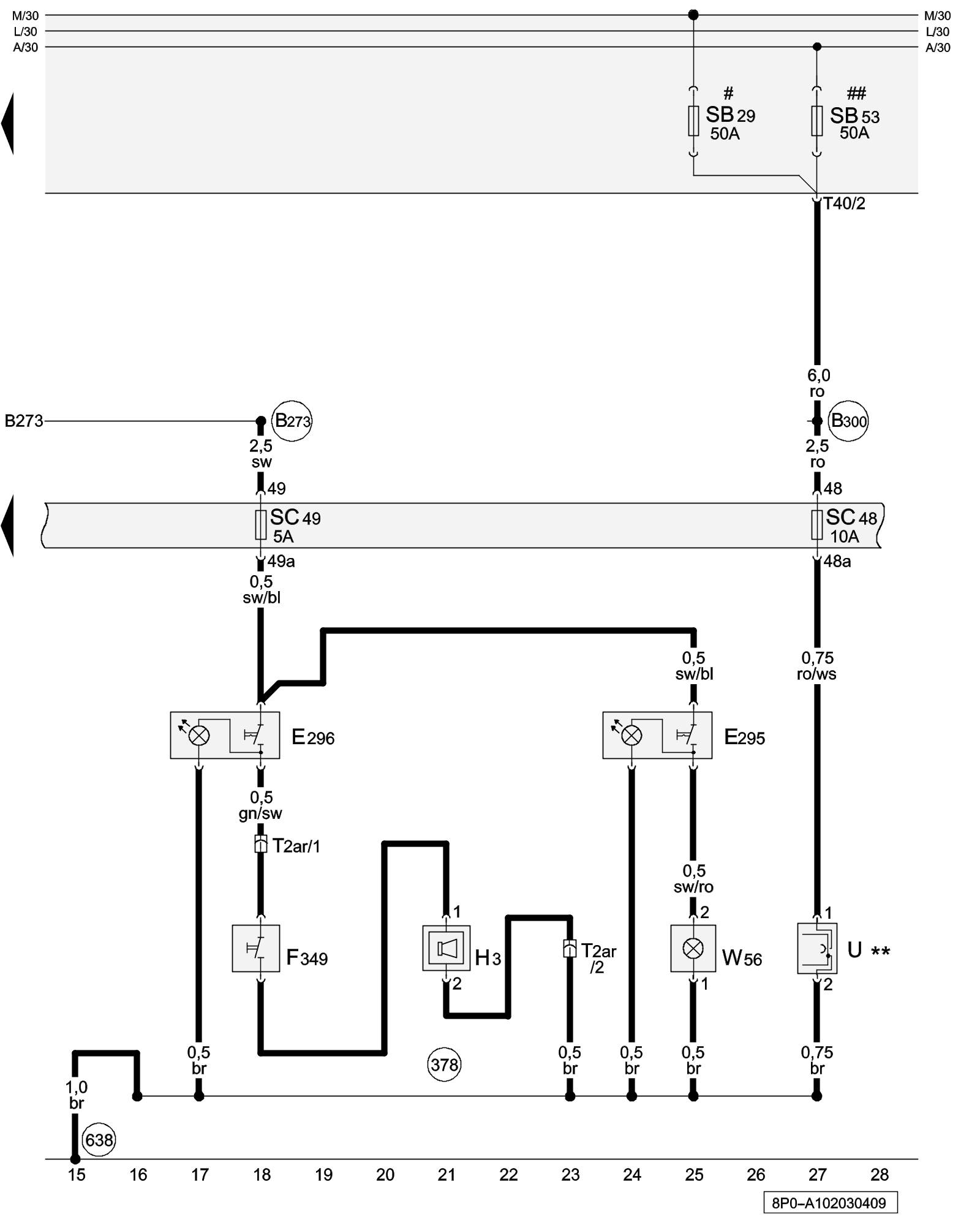

Diagram 102/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Footwell Illumination Switch, Warning Buzzer Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E295 - Footwell Illumination Switch

E296 - Warning Buzzer Switch

F349 - Front Passenger's Warning Buzzer Pedal Switch

H3 - Warning Buzzer

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

SB53 - Fuse 53 (on fuse panel B) Overview Of Fuses

SC48 - Fuse 48 (on fuse panel C) Overview Of Fuses

SC49 - Fuse 49 (on fuse panel C) Overview Of Fuses

T2ar - Double Connector, black, behind glove compartment

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

U - Socket

W56 - Driving School Footwell Illumination

(378) - Ground Connection 13 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(B273) - Plus Connection (15) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

** - In glove compartment

# - Only models with electronics box Low

## - Only models with electronics box High
