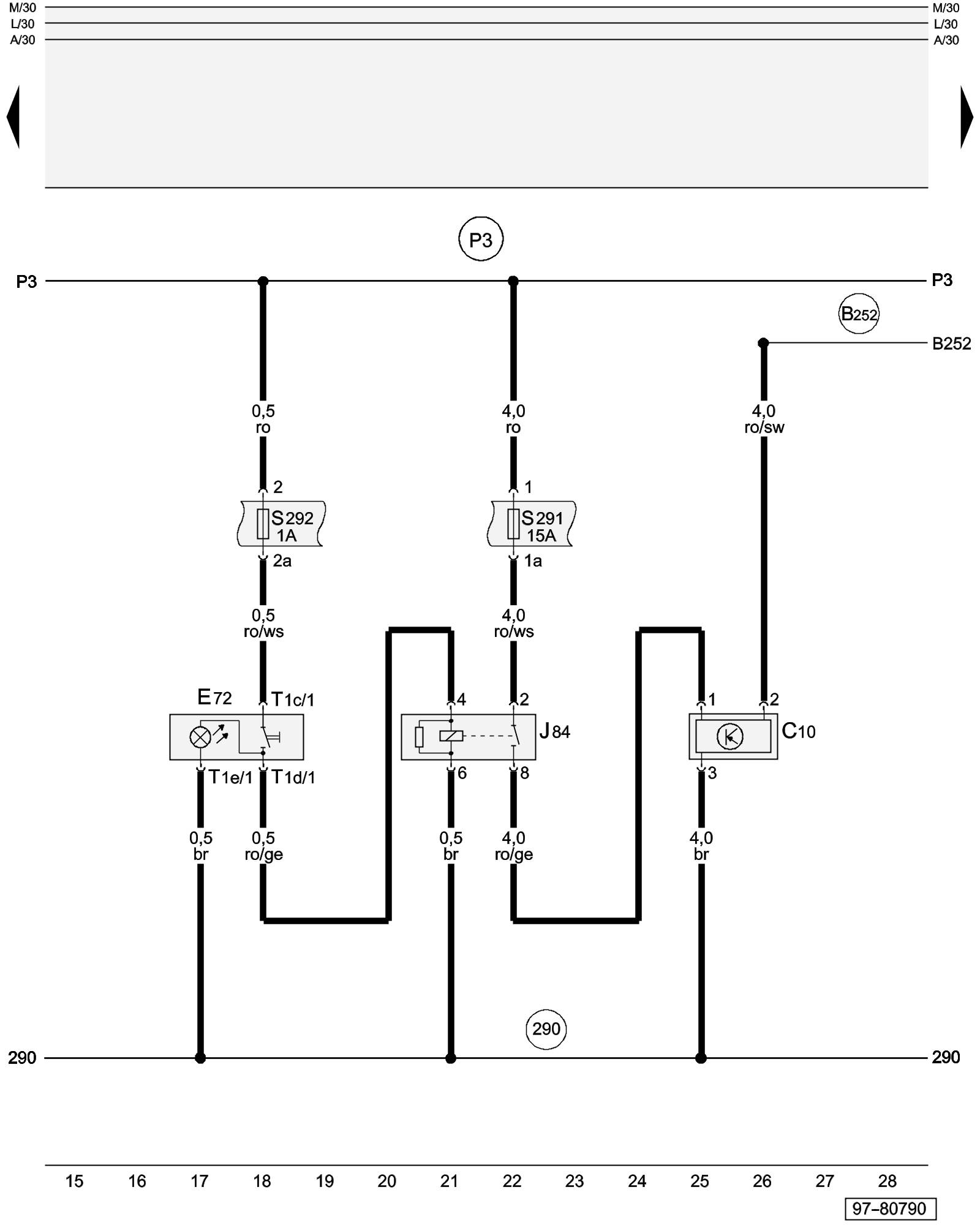

Diagram 103/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Suppressor Filter, Two-way Radio Switch, Two-Way Radio Cut-Off Relay, Special Purpose Vehicles Fuse





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C10 - Suppressor Filter

E72 - Two-way Radio Switch

J84 - Two-Way Radio Cut-Off Relay

S291 - Special Purpose Vehicle Fuse 1

S292 - Special Purpose Vehicle Fuse 2

T1c - Single Connector, green, on two-way radio switch

T1d - Single Connector, white, on two-way radio switch

T1e - Single Connector, brown, on two-way radio switch

(290) - Ground Connection 1 (in second battery wiring harness)

(B252) - Plus Connection (30 - Police) (in interior wiring harness)

(P3) - Plus Connection (30) (in auxiliary battery wiring harness)
