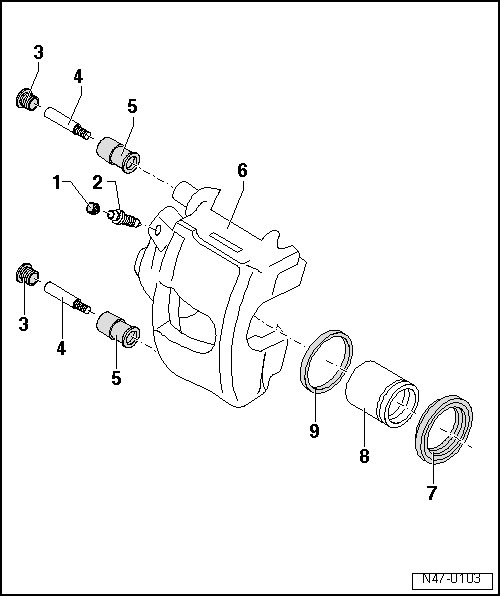

Brake Caliper, FS III Overview

Brake Caliper, FS III Overview

• Install complete repair kit when servicing.

• New brake calipers are filled with brake fluid and are pre-bled.

• Apply thin coat of lithium grease (G 052 150 A2) to brake cylinders, pistons and seals.






1 - Protective Cap

2 - Bleeder Screw

• 10 Nm

• Apply a thin coat of lithium grease (G 052 150 A2) to the threads before screwing in.

3 - Caps

• Insert in bushing

4 - Guide Pins

• 28 Nm

5 - Bushing

• Insert in brake caliper

6 - Brake Caliper

• Brake caliper with a balance weight, refer to => [ Brake Caliper with Balance Weight ] Brake Caliper With Balance Weight

7 - Protective Cap

• Pull onto piston with outer sealing lip

• Removing and installing, refer to => [ Brake Caliper Piston, FN3 ] Brake Caliper Piston, FN3

8 - Pistons

• Removing and installing, refer to => [ Brake Caliper Piston, FN3 ] Brake Caliper Piston, FN3

• Apply thin coat of lithium grease (G 052 150 A2) to piston

9 - Seal

• Do not damage when installing piston

• Removing and installing, refer to => [ Brake Caliper Piston, FN3 ] Brake Caliper Piston, FN3
