Sill Side Trim Retaining Bracket

Sill Side Trim Retaining Bracket

Removing





- Remove the sill side trim. Refer to => [ Sill Side Trim ] Sill Side Trim.

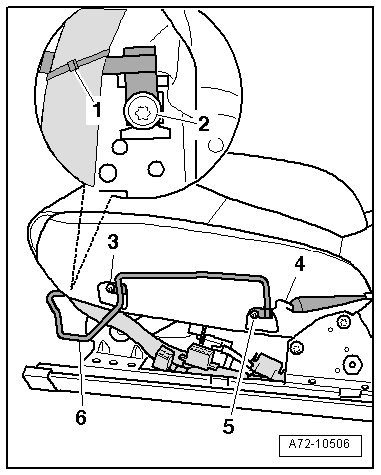

- Disconnect the rubber cable - 4 - for the backrest cover.

- Disconnect the cable ties - 1 -.

- Remove the screws - 2, 3 and 5 -.

- Remove the retaining bracket - 6 - for the sill side trim.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Sill Side Trim, Retaining Bracket and Tunnel Side Trim Component Overview ] Sill Side Trim, Retaining Bracket and Tunnel Side Trim Component Overview.
