Sill Side Trim Retaining Bracket

Sill Side Trim Retaining Bracket

Removing


• Follow the safety precautions for pyrotechnic components.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Disconnect the battery ground wire with the ignition off.

- Remove front seat. Refer to => [ Front Manual Seat ] Front Manual Seat.

- Remove the storage compartment bracket. Refer to => [ Storage Compartment with Bracket ] Storage Compartment With Bracket.

- Remove side trim on sill side. Refer to => [ Sill Side Trim ] Sill Side Trim.

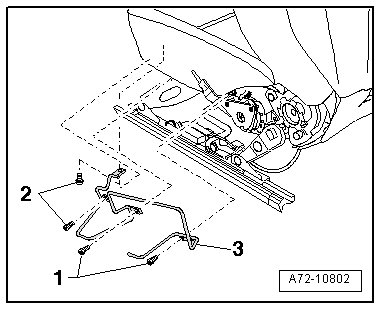

- Remove bolts - 1 - and - 2 -.





- Remove retaining bracket - 3 -.

Installation


• Follow the safety precautions for pyrotechnic components.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Ensure that electrical connections are pushed in as far as stop and engage with a click.


Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Disconnect the battery ground wire with the ignition switched on.

• If Airbag Malfunction Indicator Lamp (MIL) (K75) indicates a fault after installation, DTC memory must be checked, deleted and checked again.

Tightening specifications, refer to => [ Seat Adjustment Trim Component Overview ] Seat Adjustment Trim Component Overview.
