Four-Way Lumbar Support Component Overview, Version 1

Four-Way Lumbar Support Component Overview, Version 1

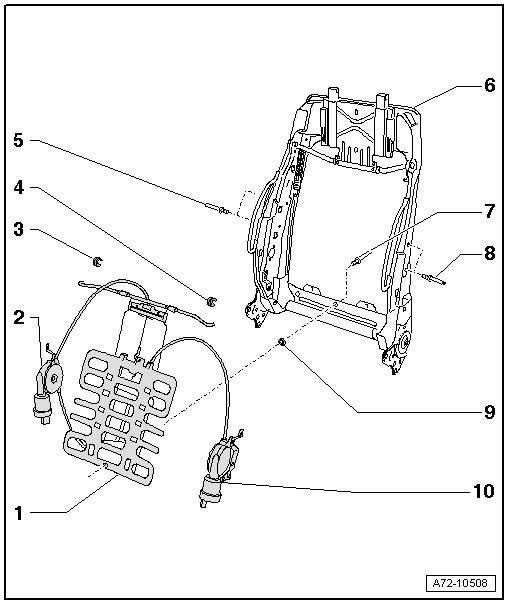

1 Four-way Lumbar Support

• With the lumbar support guide

• Removing and Installing, refer to => [ Four-Way Lumbar Support, Version 1 ] Four-Way Lumbar Support, Version 1

2 Lumbar Support Height Adjustment Motor

• Driver Seat Lumbar Support Height Adjustment Motor (V129)

• Passenger Seat Lumbar Support Height Adjustment Motor (V130)

• Cannot be replaced separately

3 Clip

4 Clip

5 Rivet

• Rivet with (VAS 5072)

6 Backrest Frame

7 Rivet

• Rivet using (V.A.G 1753A)

8 Rivet

• Rivet with (VAS 5072)

9 Plastic Washer

• Insert between four-way lumbar support and backrest frame

10 Lumbar Support Curvature Adjustment Motor

• Driver Seat Lumbar Support Curvature Adjustment Motor (V125)

• Passenger Seat Lumbar Support Curvature Adjustment Motor (V126)

• Cannot be replaced separately
