Removal and Replacement

Water Drain Hoses Overview

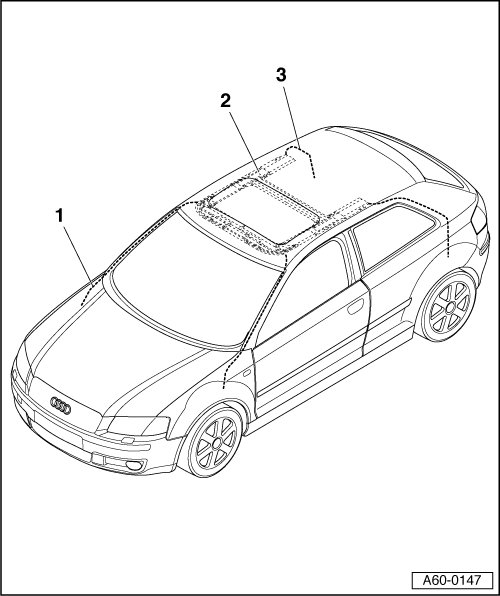

1 - Front Water Drain Hose

• Route the front water drain hoses through the A-pillars and have them end in the wheel housing over the wheel house liner.

• Cleaning, refer to => [ Water Drain Hoses, Cleaning ] Procedures

2 - Frame

• For sunroof operation

3 - Rear Water Drain Hose

• Rear water drain hoses are routed in C pillars and end in wheel housing above wheel housing liner.

• Cleaning, refer to => [ Water Drain Hoses, Cleaning ] Procedures
