Procedures

Water Drain Hoses, Cleaning

• For cleaning, an assisting tool is recommended, such as a speedometer driveshaft inner cable, approximately. 2300 mm (90.5 in.) long.

Front Water Drain Hose

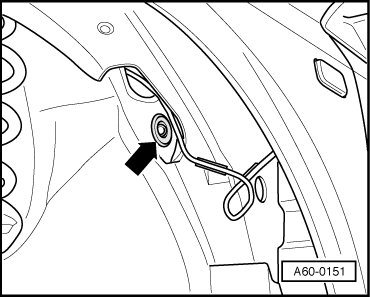

- Front water drain hoses are routed in the A-pillars and end in wheel housing above wheel housing liner - arrow -.






• They are cleaned from the sunroof opening.

Rear Water Drain Hose

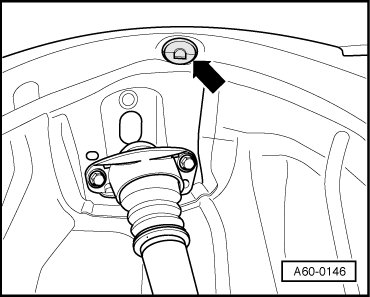

- Rear water drain hoses are routed in C pillars and end in wheel housing above wheel housing liner - arrow -.






• Cleaning is performed at lower end of hose.

- Remove rear wheel housing liner. Refer to => [ Rear Wheel Housing Liner ] Rear Wheel Housing Liner.
