Rear Door Trim, Sun Shade

Sun Shade

Removing





- Switch off ignition and remove ignition key.

- Remove door trim. Refer to => [ Rear Door Trim ] Rear Door Trim.

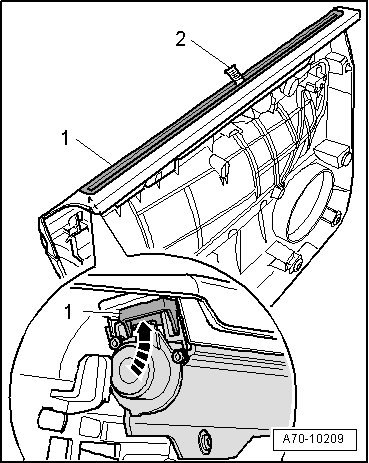

- Carefully release guide strip - 1 - at left and right with a small screwdriver - arrow -.

- Pull sun shade - 2 - out of door trim slightly and remove guide strip from door trim.

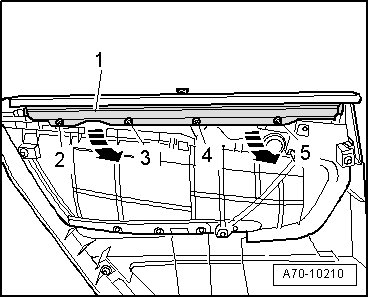

- Remove screws - 2 to 5 -.





- Remove sun shade - 1 - by lightly tipping outward - arrows - out of door trim.

Installation





Installation is reverse of removal, but note the following:

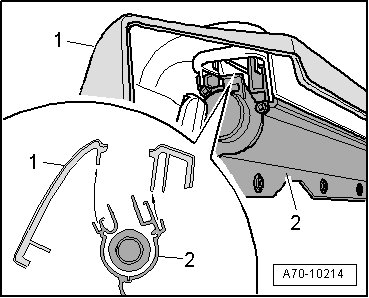

- The mounting grooves in the sun shade housing - 2 - must engage in door trim guide pins - 1 - - arrows -.

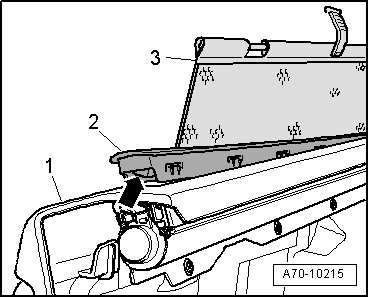

- The guide strip - 2 - can only be inserted in one position in door trim - 1 -.





• How to recognize: the beveled edge - arrow - must face toward window side.

- Pull sun shade - 3 - out of door trim slightly and insert guide strip in door trim as shown in illustration.

Tightening Specifications
