Luggage / Roof Rack: Service and Repair

Roof Rail

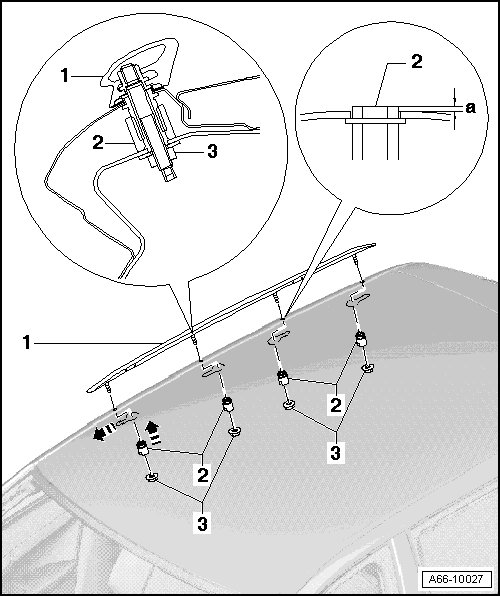

1 Roof Rail

- To assemble or disassemble, headliner must be removed.

- Adjusting elements must be slid into roof and lie in installation position.

- Place molding onto roof and threaded pins through adjusting elements and tighten hex nuts to 10 Nm.

2 Adjusting Element


When sliding into roof, make sure that adjusting elements do not fall into body.

• Insert adjusting element into hole provided and slide it forward into installation position.

• Position adjusting element so that it makes contact, with light pre-tension of 0.2 Nm.

3 Hex Nut

• 10 Nm
