Power Mirror Motor: Service and Repair

Mirror Adjusting Motor

- Mirror lens removed.

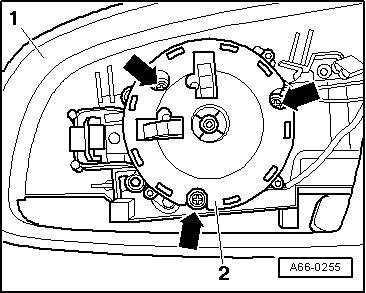

- Remove bolts - arrows - from mirror adjusting unit.






- Remove motor - 2 - from mirror adjusting unit and disconnect electrical harness connector.

- When installing, tighten bolts to 1 Nm.
