Trim

Trim

Removing





- Remove center armrest, refer to => [ Center Armrest ] Center Armrest.

- Remove upholstery, refer to => [ Upholstery ] Upholstery.

- Remove left/right side cover, refer to => [ Left and Right Side Cover ] Left and Right Side Cover.

- Remove storage compartment, refer to => [ Storage Compartment ] Storage Compartment.

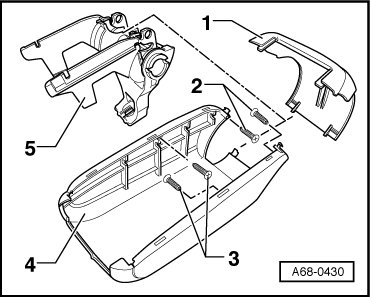

- Remove bolts - 2 - (quantity: 2).

- Unclip rear cover - 1 - from trim - 4 -.

- Remove bolts - 3 - (quantity: 2).

- Remove trim - 4 - from carrier - 5 -.

Installation

To install, perform the steps used in removal in reverse order. Note the following:

- Make sure all parts latch with each other correctly (audibly).
