Storage Compartments, Version 2 With Smoking Package

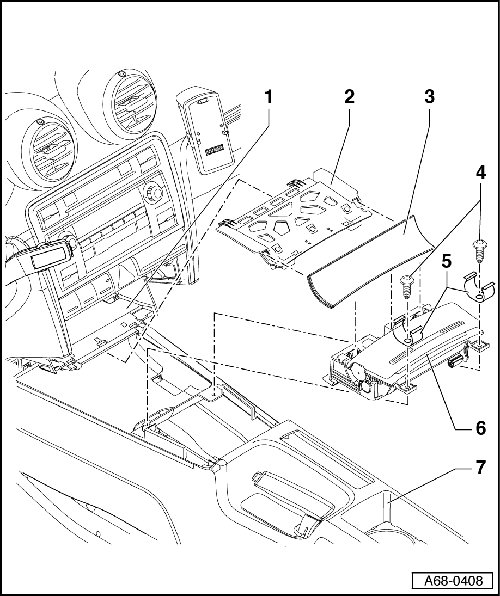

Storage Compartments, Version 2 with Smoking Package






1 Center Section

2 Storage Compartment Cover Carrier

Removing

- Remove the front ashtray - 6 -.

- Unclip front storage compartment cover - 3 -.

- Unclip storage compartment cover carrier - 2 -.

Installation

To install, perform the steps used in removal in reverse order.

3 Front Storage Compartment Cover

Removing

- Remove the front ashtray - 6 -.

- Unclip front storage compartment cover - 3 -.

Installation

To install, perform the steps used in removal in reverse order.

4 Screws

3.5 Nm

• Quantity: 2

5 Omega Clips

• Quantity: 2

• Maintain installation position as shown in illustration

6 Front ashtray

Removing

Manual Transmission:

- Remove cover with selector lever boot => [ Cover with Selector Lever Boot, Removing and
Installing ].

Automatic Transmission:

- Version I: remove the selector lever cover => [ Version I: Removing and Installing the Selector
Lever Cover ].

- Version II: remove the selector boot and cover => [ Version II: Removing and Installing the Selector
Lever Boot and Cover ].

All:

- Remove bolts - 4 - (quantity: 2).

- Remove omega clips - 5 -.

- Remove ashtray - 6 -.

Installation

To install, perform the steps used in removal in reverse order.

7 Center Console

Cover with Selector Lever Boot, Removing and Installing





- Open ashtray in center console.

- Remove cover - 1 - with selector lever boot - 2 - upward.

To install, perform the steps used in removal in reverse order.

Version I: Removing and Installing the Selector Lever Cover





- Open ashtray in center console.

- Remove selector lever cover upward - arrows -.

To install, perform the steps used in removal in reverse order.

Version II: Removing and Installing the Selector Lever Boot and Cover





- Unclip selector lever boot - 1 - on both sides and remove upward - arrows -.

- Grasp through opening and remove cover - 1 - upward - arrows -.





- Disconnect electrical connector.

To install, perform the steps used in removal in reverse order.

Omega Clips, Installation Location





1. Omega clips
