Sun Visors

Sun Visors

Removing





- Disengage sun visor - 1 - in center of vehicle from sun visor center bracket.

- Remove cover cap - 3 -.

- Remove the bolt - 2 -.

- Swing visor bearing down and remove sun visor.

- If present, disconnect vanity mirror lighting connector.

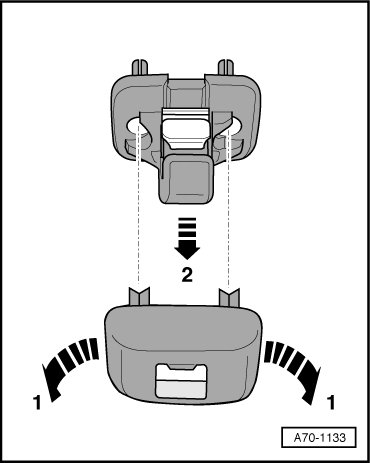

- Unclip sun visor center bracket cover - arrows 1 -.





- Pull sun visor center bracket out - arrow 2 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening Specifications
