Headliner: Locations

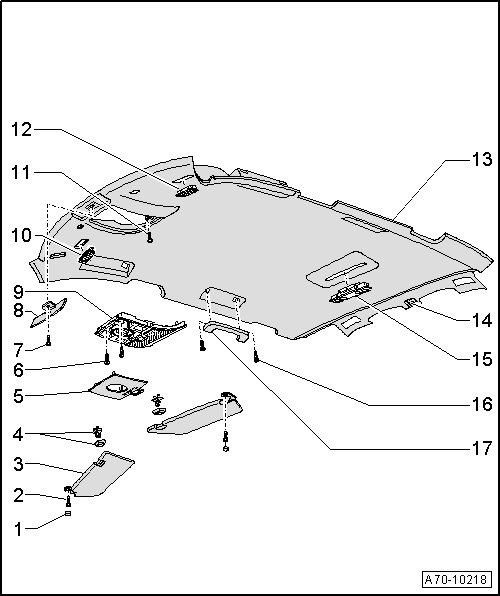

Headliner Component Overview

• Shown on vehicles without sunroof in illustration.





1 Cover

2 Bolt

4 Nm

3 Sun Visor

• Removing and Installing, refer to => [ Sun Visors ] Sun Visors

4 Sun Visor Center Bearing

5 Cover

• For reading light

6 Bolt

1.5 Nm

7 Bolt

2 Nm

8 Center Sun Visor

• Removing and Installing, refer to => [ Center Sun Visor ] Center Sun Visor

9 Interior Light/Front Reading Light

10 Vanity Mirror Light

11 Bolt

1.5 Nm

12 Vanity Mirror Light

13 Headliner

• Removing and Installing, refer to => [ Headliner ] Headliner

14 Retaining Clip

• For headliner

• Releasing => [ Release Headline Clip ]

15 Interior Light/Rear Reading Light

16 Bolt

4 Nm

• Self-locking

• Replace

17 Roof Grab Handle

• Removing and Installing, refer to => [ Roof Grab Handle ] Roof Grab Handle

Release Headline Clip

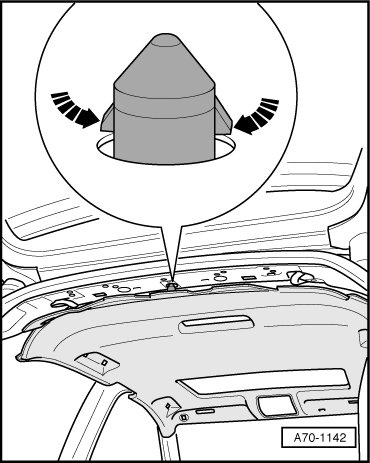

- Release clips on rear clip - arrows -.
