Rear Muffler Heat Shield

Rear Muffler Heat Shield

Removing

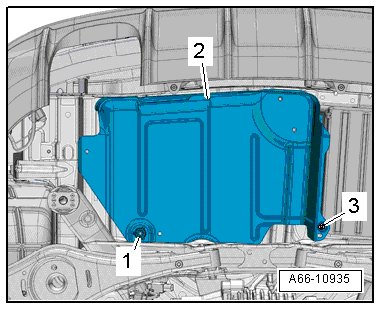

- Remove the rear exhaust system.

- Remove the bolt - 3 -.






- Remove the nuts - 1 - while bending the securing tabs upward.

- Remove the heat shield - 2 - downward.

Installing

• Tightening specifications, refer to => [ Heat Shields, Crossbraces Overview ] Heat Shields, Crossbraces Overview.

Installation is reverse of removal, but note the following:

- Install the rear exhaust system.
