Crossmember For Vehicle Floor

Crossmember for Vehicle Floor

Removing

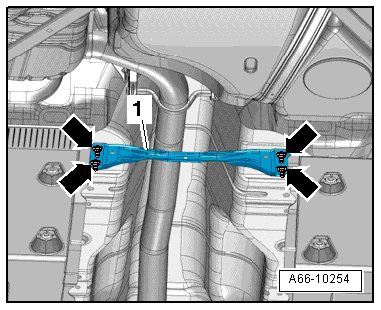

- Remove the nuts - arrows -.






- Remove the crossmember - 1 -.

Installation

• Tightening specifications, refer to => [ Heat Shields, Crossbraces Overview ] Heat Shields, Crossbraces Overview.

To install, perform the steps used in removal in reverse order.
