Aerodynamic Underbody Trim Panel

Aerodynamic Underbody Trim Panel

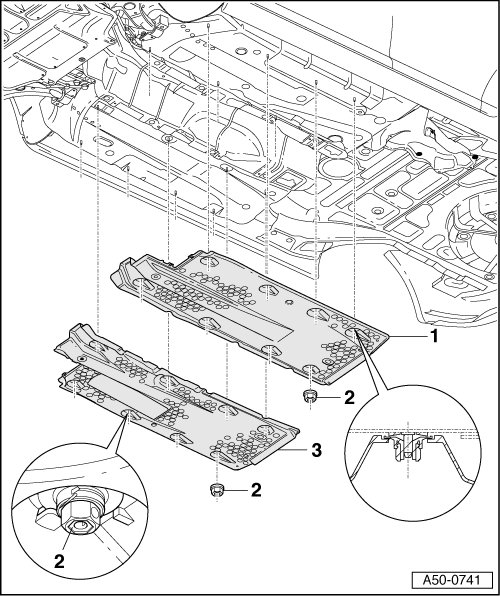

1 - Left Aerodynmic Trim Panel

• When first installing underside panel, slide onto retaining pins with open impact nut.

• Close impact nut by a hammer blow onto head of nut.

• Impact nuts must engage correctly.

• Weld studs and impact nuts must be flush.

• During reinstallation with engaged impact nut, screw on nut and tighten to 1.5 Nm.

• To remove, unscrew nut.

2 - Impact Nut

• 8x

• When reinstalling, tighten to 1.5 Nm.

3 - Right Aerodynamic Trim Panel
