Trunk / Liftgate Handle: Service and Repair

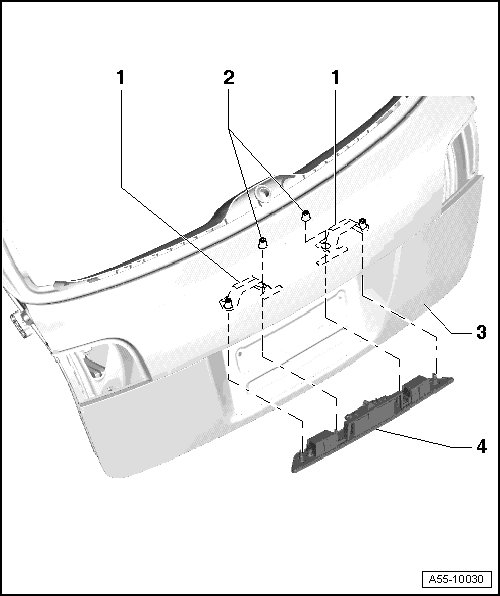

Rear Lid Grip Piece

Removing

- Disconnect inner connector at grip piece - 4 -.






1 Securing Piece

• Remove nuts on securing pieces - 1 - at left and right as well as nuts - 2 -.

- Remove securing pieces from lid.

- Tightening specification: 8 Nm.

• Release retainer on grip piece and pull out of lid.

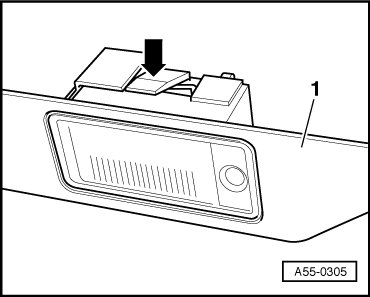

Release Retainer for Grip Piece





- Press both catches - arrows - over license plate lights down and remove grip piece - 1 -.

Installation

To install, perform the steps used in removal in reverse order.
