Hood Weatherstrip: Service and Repair

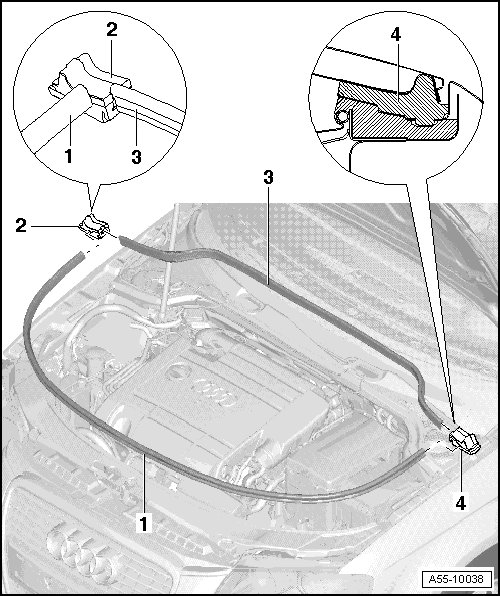

Hood Seal






1 - Lock Carrier Seal

• Position seal at center on lock carrier (note center marking) and slide onto flange at lock carrier and fender at side.

2 - Left Sealing Profile

• Self-adhesive

• Before installing, adhesion surface must be free of dust and grease.

• Pull off protective paper and press on seal firmly.

3 - Plenum Chamber Seal

• Bring molded section - arrows - into contact and press seal onto flange from above, working from outside toward inside.

4 - Right Sealing Profile

• Self-adhesive

• Before installing, adhesion surface must be free of dust and grease.

• Pull off protective paper and press on seal firmly.
