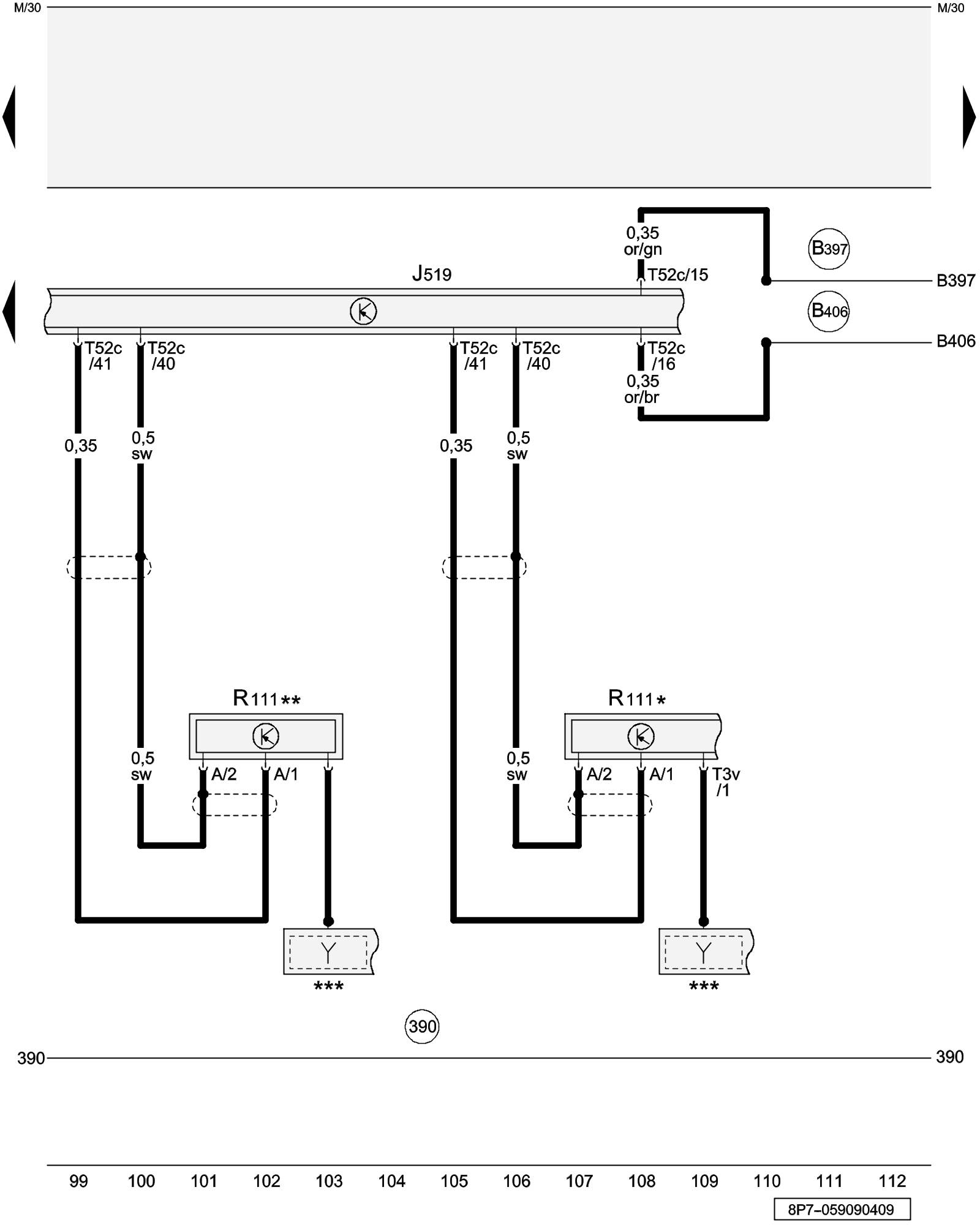

Diagram 59/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Right Windshield Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

R111 - Antenna Amplifier 2

T3v - 3-Pin Connector

T52c - 52-Pin Connector, brown (Connector C)

(390) - Ground Connection 25 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with radio or radio/navigation system

** - Not for models with radio or radio/navigation system

*** - Right windshield
