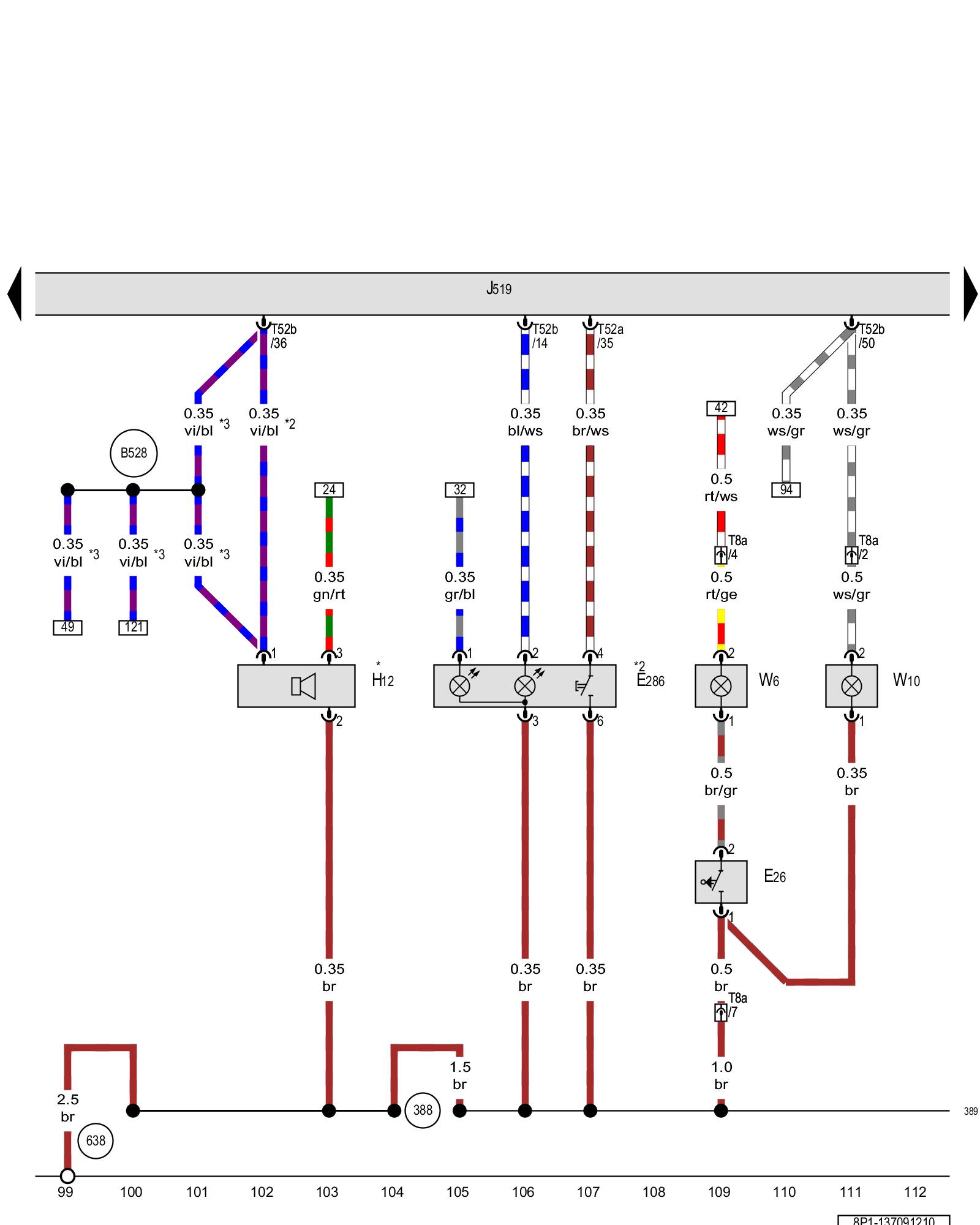

Diagram 137/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Rear center interior locking switch, Alarm horn, Glove compartment lamp, Right footwell lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E26 - Glove compartment lamp switch

E286 - Rear center interior locking switch

H12 - Alarm horn Locations

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

T8a - 8-pin connector, near the glove compartment

T52a - 52-pin connector

T52b - 52-pin connector

W6 - Glove compartment lamp

W10 - Right footwell lamp

(388) - Ground connection 23 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(638) - Ground connection on right A-pillar Overview Of Ground Connections in Interior Of Vehicle

(B528) - LIN bus connection 1 (in main wiring harness)

* - Only for vehicles with an alarm horn

*2 - Only for vehicles with US equipment

*3 - For vehicles with anti-theft alarm system
